D2601N Rectifier Diode

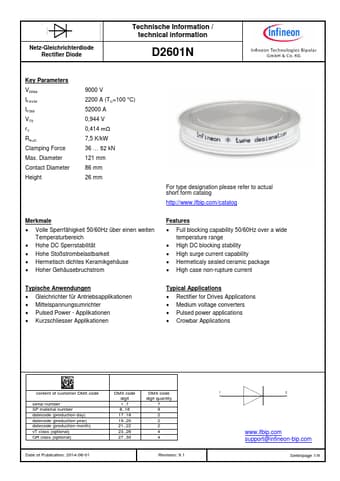

Netz-Gleichrichterdiode Rectifier Diode Technische Information / technical information D2601N Key Parameters VRRM enndaten IFAVM IFSM VT0 rT RthJC Clamping Force Max. Diameter Contact Diameter Height 9000 V 2200 A (TC=100 °C) 35527000A0 A(TC=55°C) 0,944 V 0,414 mΩ 7,5 K/kW 36 … 52 kN 121 mm 86 mm 26 mm For type designation please refer to actual short form catalog http://www.ifbip.com/catalog Merkmale Volle Sperrfähigkeit 50/60Hz über einen weiten Temperaturbereich Hohe DC Sperr.

D2601N Features

* Full blocking capability 50/60Hz over a wide temperature range

* High DC blocking stability

* High surge current capability

* Hermeticaly sealed ceramic package

* High case non-rupture current Typische Anwendungen

* Gleichrichter für Antriebsapplikationen

* Mittelspann
