D2601D, D2601 Rectifiers

D2601D Description

File No.723' _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ oornLJ[J Rectifiers Solid State Division 02601 Series Anode f fiICatho.

D2601D Features

* Fast reverse-recovery time (tr,) 0.5 liS max. (I FM = 20 A peak see test circuit Fig. 13) 0.2 liS max. (IF = 1 A, IRM = 2 A max. , see test circuit Fig. 14)
* Low overshoot current
* Low forward
* voltage drop
* Low
* thermal
* resistance hermetic package ~P

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: D2601D, D2601. Please refer to the document for exact specifications by model.

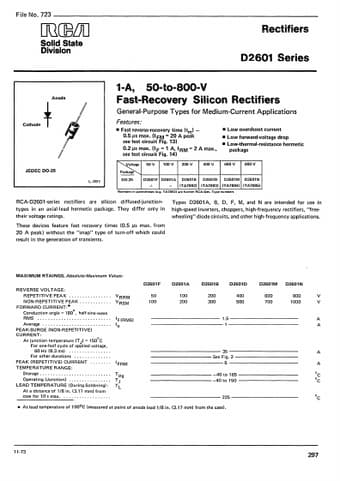

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
D2601D, D2601
Manufacturer
RCA
File Size
285.87 KB
Datasheet
D2601-RCA.pdf
Description
Rectifiers
Note
This datasheet PDF includes multiple part numbers: D2601D, D2601.
Please refer to the document for exact specifications by model.
