DDA010

ICE2QR0665

DDA010 Features

* 650V avalanche rugged CoolMOS® with built-in startup cell

* Quasiresonant operation till very low load

* Active burst mode operation for low standby input power (< 0.1W)

* Digital frequency reduction with decreasing load for reduced switching loss

* Built-in

DDA010 General Description

The CoolSET®-Q1 series (ICE2QRxx65) is the first generation of quasi-resonant integarted power ICs. It is optimized for off-line switch mode power supply applications such as LCD monitor, DVD R/W, DVD Combo, Blue-ray DVD, set top box, etc. Operting the MOSFET switch in quasi-resonant mode, lower EMI.

DDA010 Datasheet (770.20 KB)

Preview of DDA010 PDF

Datasheet Details

Part number:

DDA010

Manufacturer:

Infineon ↗

File Size:

770.20 KB

Description:

Ice2qr0665.

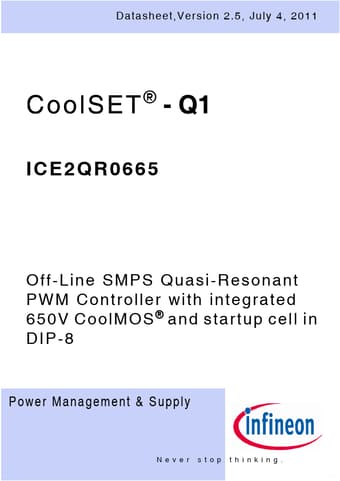

Datasheet,Version 2.5, July 4, 2011 ® ICE2QR0665 Off-Line SMPS Quasi-Resonant PWM Controller with integrated 650V CoolMOS® and startup cell in DIP-8 .
