FF06MR12A04MA2 - DSC S module

Infineon

FF06MR12A04MA2 Datasheet Preview — Preview of FF06MR12A04MA2 PDF

Datasheet Details

Part number	FF06MR12A04MA2
Manufacturer	Infineon ↗
File Size	1.91 MB
Description	DSC S module
Datasheet	FF06MR12A04MA2-Infineon.pdf

FF06MR12A04MA2 Product details

Description

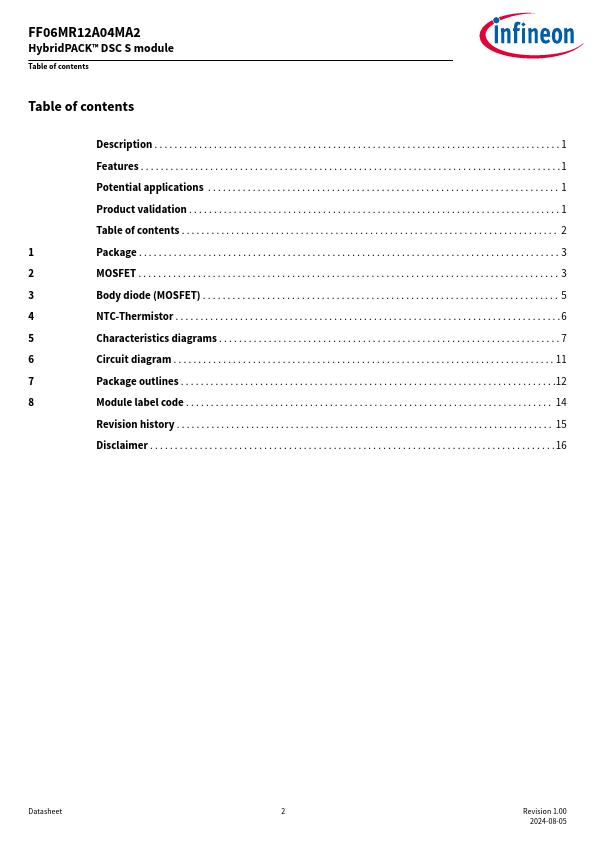

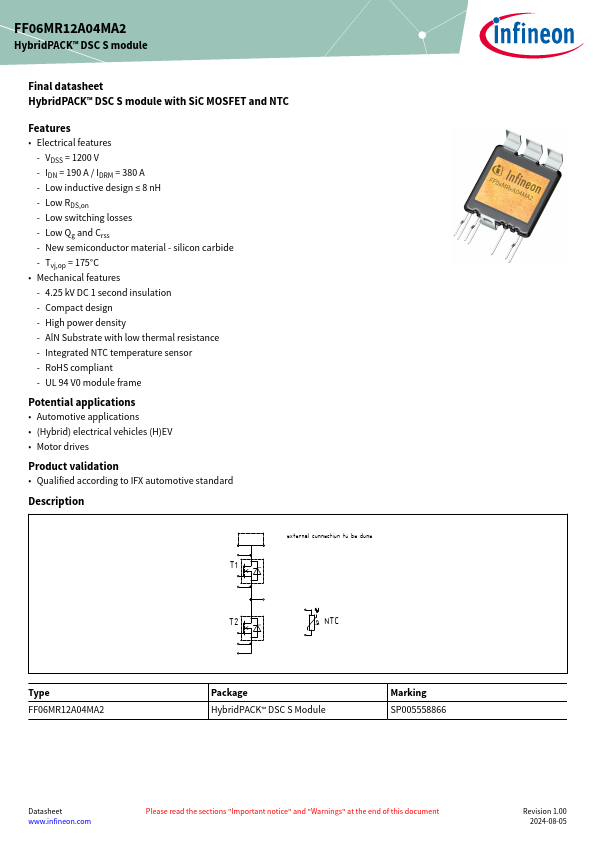

external connection to be done T1 T2 J NTC Type FF06MR12A04MA2 Package HybridPACK™ DSC S Module Marking SP005558866 Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2024-08-05 FF06MR12A04MA2 HybridPACK™ DSC S module Table of contents Table of contents Description .

Features

Electrical features - VDSS = 1200 V - IDN = 190 A / IDRM = 380 A - Low inductive design ≤ 8 nH - Low RDS,on - Low switching losses - Low Qg and Crss - New semiconductor material - silicon carbide - Tvj,op = 175°C.
Mechanical features - 4.25 kV DC 1 second insulation - Compact design - High power density - AlN Substrate with low thermal resistance - Integrated NTC temperature sensor - RoHS compliant - UL 94 V0 module frame Potential.
