FF1200R12IE5 - PrimePACK2 module

Infineon

📥 Download Datasheet

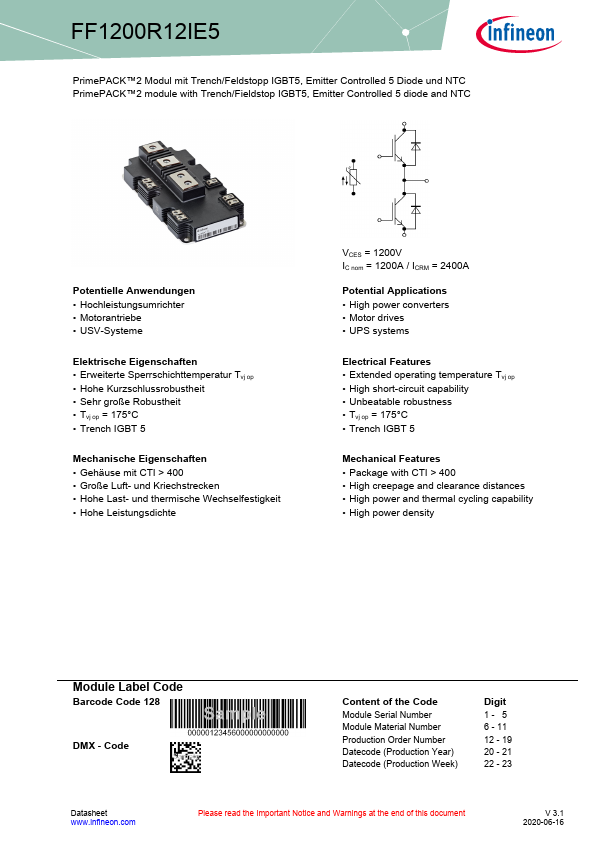

FF1200R12IE5 Datasheet Preview — Preview of FF1200R12IE5 PDF

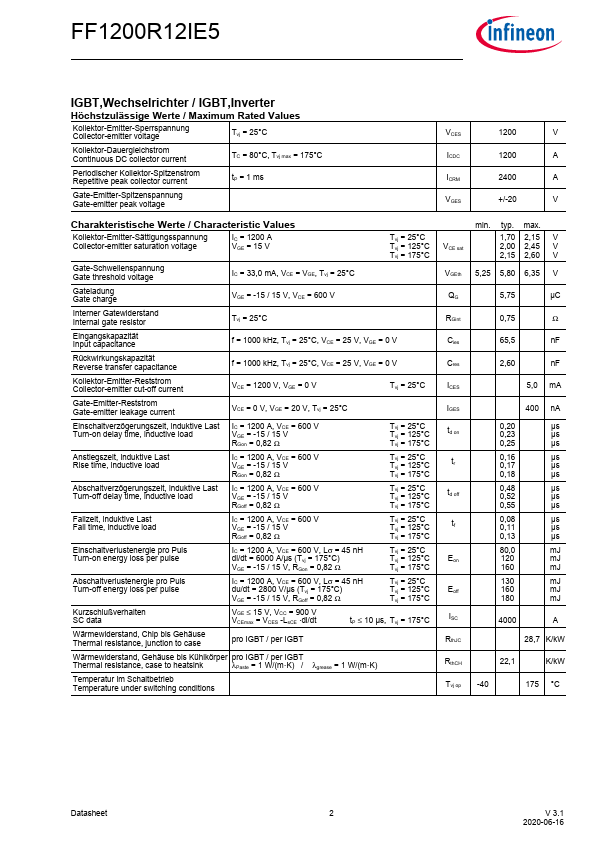

datasheet Preview Page 2

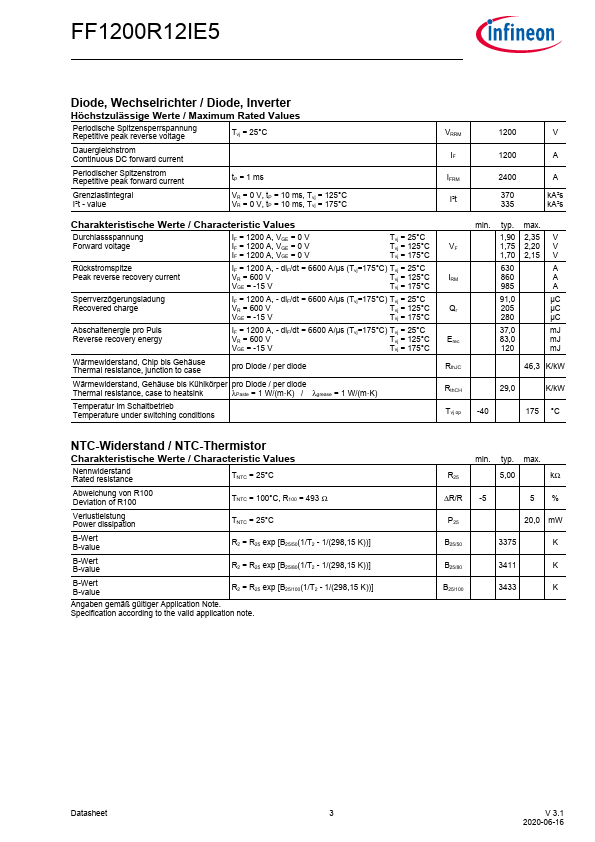

datasheet Preview Page 3

Datasheet Details

Part number	FF1200R12IE5
Manufacturer	Infineon ↗
File Size	572.98 KB
Description	PrimePACK2 module
Datasheet	FF1200R12IE5-Infineon.pdf

FF1200R12IE5 Product details

Features

Extended operating temperature Tvj op.
High short-circuit capability.
Unbeatable robustness.
Tvj op = 175°C.
Trench IGBT 5 Mechanical Features.
Package with CTI > 400.
High creepage and clearance distances.
High power and thermal cycling capability.
High power density Module Label Code Barcode Code 128 DMX - Code Content of the Code Module Serial Number Module Material Number Production Order Number Datecode (Pro.
