FF1MR12MM1H_B11 - EconoDUAL 3 module

Name: FF1MR12MM1H_B11
SKU: FF1MR12MM1H_B11-1578630

Infineon

📥 Download Datasheet

FF1MR12MM1H_B11 Datasheet Preview — Preview of FF1MR12MM1H_B11 PDF

Datasheet Details

Part number	FF1MR12MM1H_B11
Manufacturer	Infineon
File Size	904.54 KB
Description	EconoDUAL 3 module
Datasheet	FF1MR12MM1H_B11-Infineon.pdf

FF1MR12MM1H_B11 Product details

Description

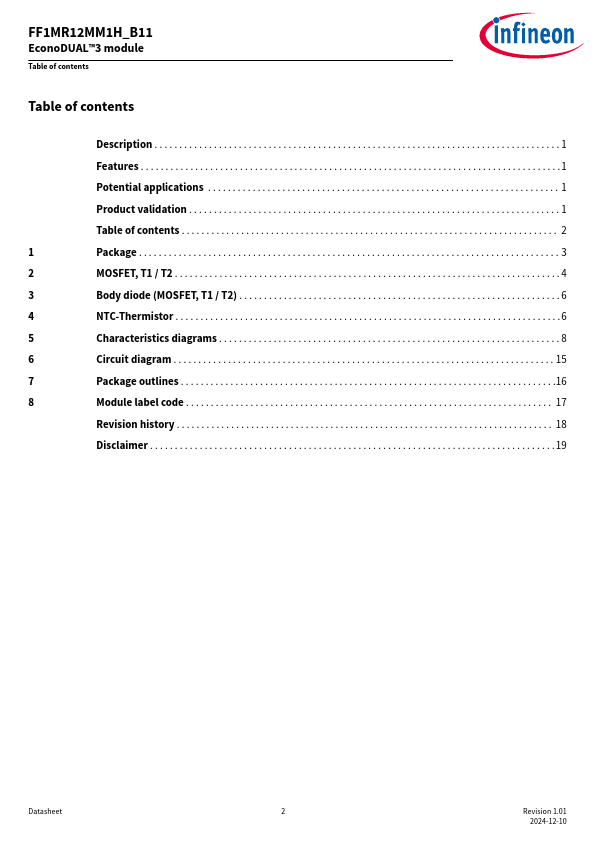

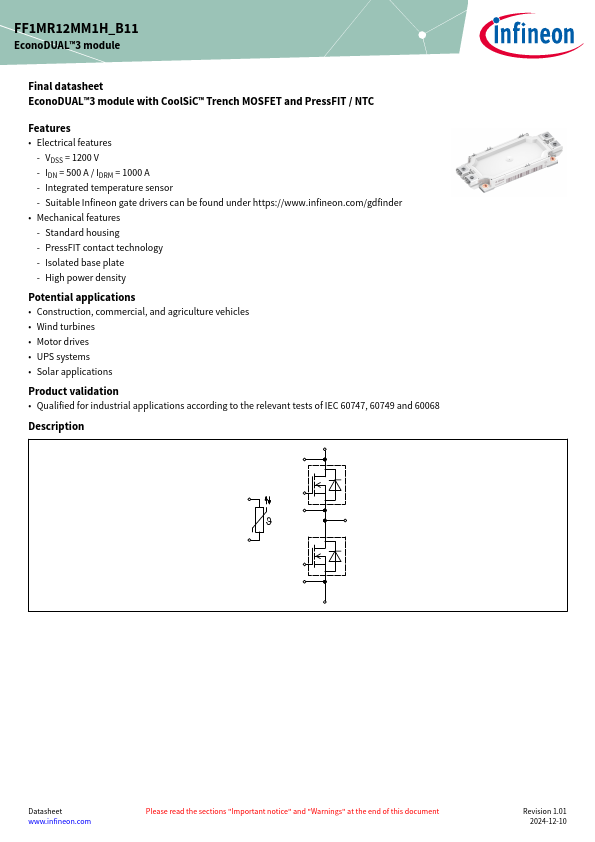

J Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.01 2024-12-10 FF1MR12MM1H_B11 EconoDUAL™3 module Table of contents Table of contents Description .

Features

Electrical features - VDSS = 1200 V - IDN = 500 A / IDRM = 1000 A - Integrated temperature sensor - Suitable Infineon gate drivers can be found under https://www. infineon. com/gdfinder.
Mechanical features - Standard housing - PressFIT contact technology - Isolated base plate - High power density Potential.
