FF2400RB12IP7 PrimePACK 3+ B-series module

📥 Download Datasheet Datasheet Preview Page 1

Description

FF2400RB12IP7 PrimePACK™3+ B-series module PrimePACK™3+ B-series module with TRENCHSTOP™IGBT7 and emitter controlled 7 diode and NTC .
- Datasheet www.

📥 Download Datasheet

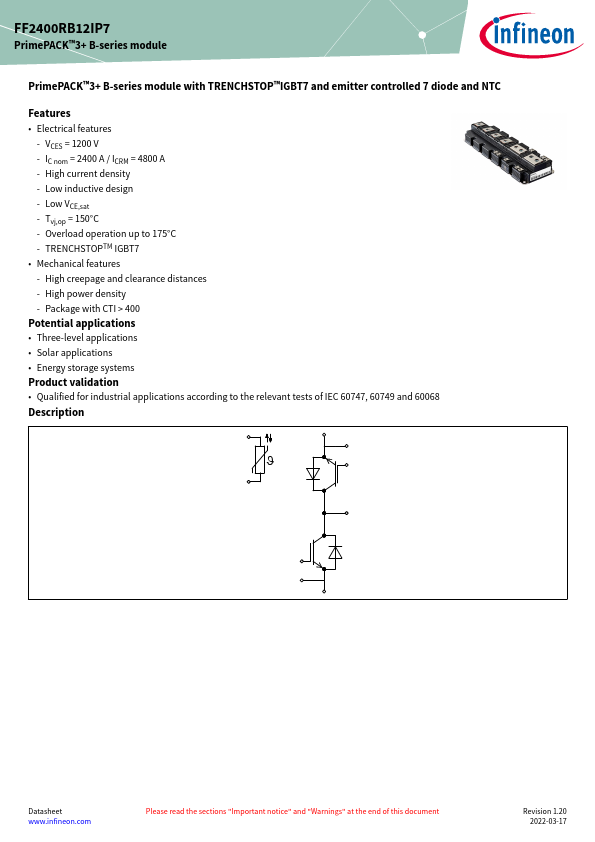

Preview of FF2400RB12IP7 PDF

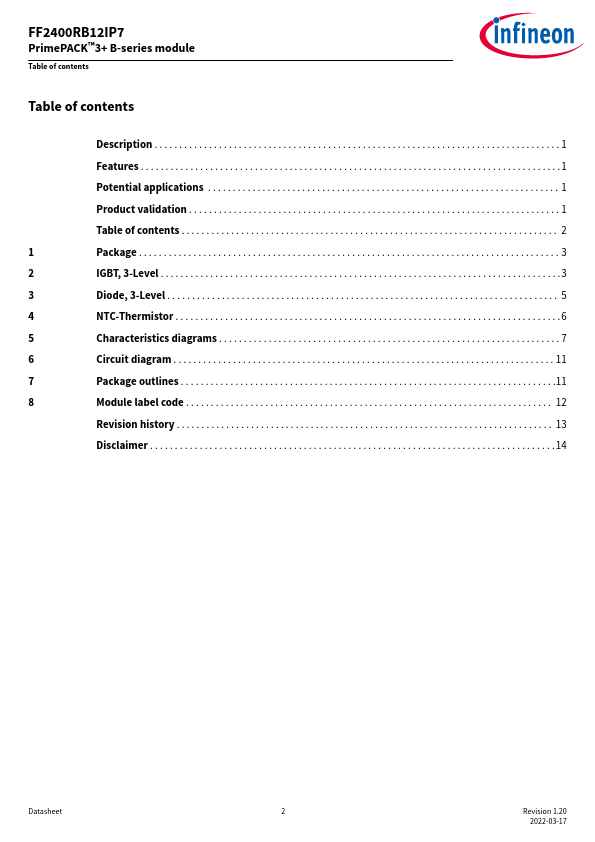

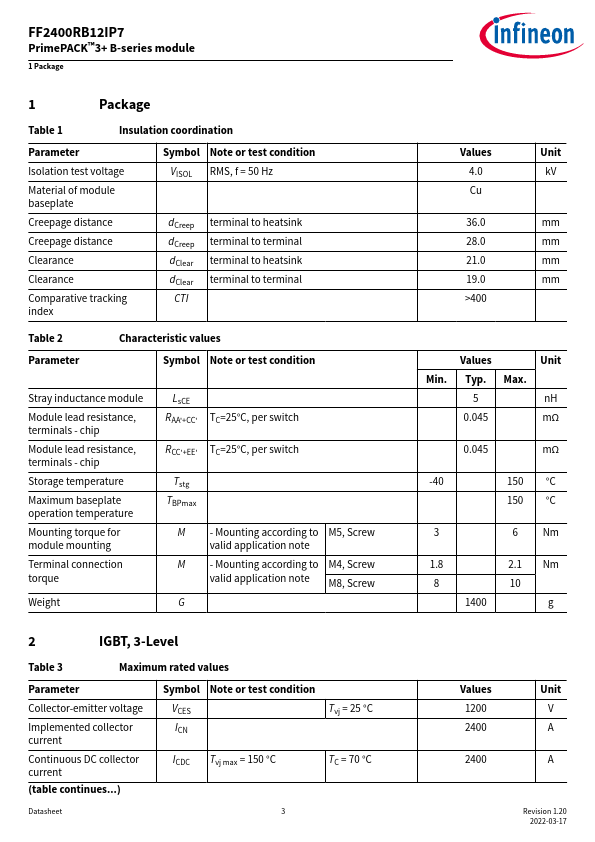

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Electrical features - VCES = 1200 V - IC nom = 2400 A / ICRM = 4800 A - High current density - Low inductive design - Low VCE,sat - Tvj,op = 150°C - Overload operation up to 175°C - TRENCHSTOPTM IGBT7
* Mechanical features - High creepage and clearance distances - High power densit

Applications

* Three-level applications
* Solar applications
* Energy storage systems Product validation
