ICE5AR0680BZS

AC-DC Power Conversion

Infineon

ICE5AR0680BZS Features

* Integrated 700 V/ 800 V avalanche rugged CoolMOS™

* Enhanced Active Burst Mode with selectable entry and exit standby power

* Digital frequency reduction for better overall system efficiency

* Fast startup achieved with cascode configuration

* DCM and CCM operation with slope c

ICE5AR0680BZS General Description

The ICE5ARxxxxBZS is the 5th generation of fixed frequency integrated power IC (CoolSET™) optimized for off-line switch mode power supply in cascode configuration. The CoolSET™ package has 2 separate chips inside; one is controller chip and the other is a 700 V/ 800 V CoolMOS™ chip. The cascode conf.

ICE5AR0680BZS Datasheet (2.25 MB)

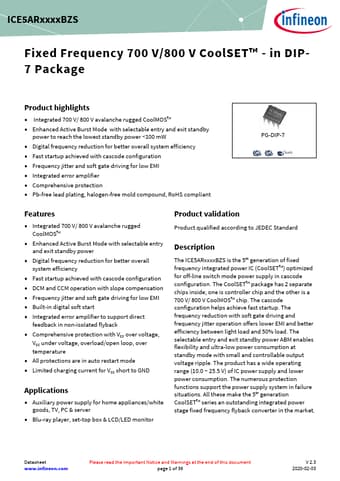

ICE5AR0680BZS Datasheet Preview — Preview of ICE5AR0680BZS PDF

Datasheet Details

Part number:

ICE5AR0680BZS

Manufacturer:

Infineon ↗

File Size:

2.25 MB

Description:

Ac-dc power conversion.
ICE5ARxxxxBZS Fixed Frequency 700 V/800 V CoolSET™ - in DIP7 Package Product highlights
* Integrated 700 V/ 800 V avalanche rugged CoolMOS™
*.
