IGC80T75E12RD2CKA Datasheet - Infineon

EDT2 IGBT

IGC80T75E12RD2CKA Features

* 750V trench + field stop technology

* Low VCE(sat)

* Low switching losses

* Short tail current

* Positive temperature coefficient

* Integrated gate resistor

* Easy paralleling

* Integrated current mirror (current sensor)

* Int

IGC80T75E12RD2CKA General Description

* Recommended for power modules Product Validation * Technology qualified for automotive applications. Ready for validation for automotive applications according to AEC Q100/101 or AQG324. Key Performance Parameters Chip Type IGC80T75E12RD2CKA VCE 750V ICn 150A Die Size 80.1mm2.

IGC80T75E12RD2CKA Datasheet (300.41 KB)

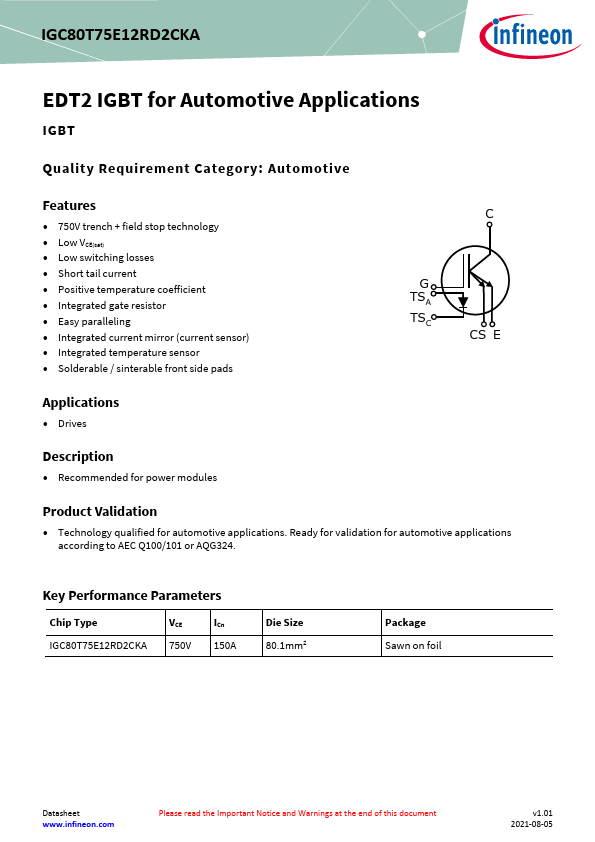

Preview of IGC80T75E12RD2CKA PDF

Datasheet Details

Part number:

IGC80T75E12RD2CKA

Manufacturer:

Infineon ↗

File Size:

300.41 KB

Description:

Edt2 igbt.

📁 Related Datasheet

IGC89T170S8RM IGBT (Infineon)

IGC019S06S1 60V Transistor (Infineon)

IGC025S08S1 Transistor (Infineon)

IGC033S101 100V Transistor (Infineon)

IGC033S10S1 100V Transistor (Infineon)

IGC037S12S1 120V Transistor (Infineon)

IGC03R60DE IGBT (Infineon)

IGC04R60DE IGBT (Infineon)

IGC05R60DE IGBT (Infineon)

IGC06R60DE IGBT (Infineon)

TAGS

IGC80T75E12RD2CKA EDT2 IGBT Infineon

Image Gallery

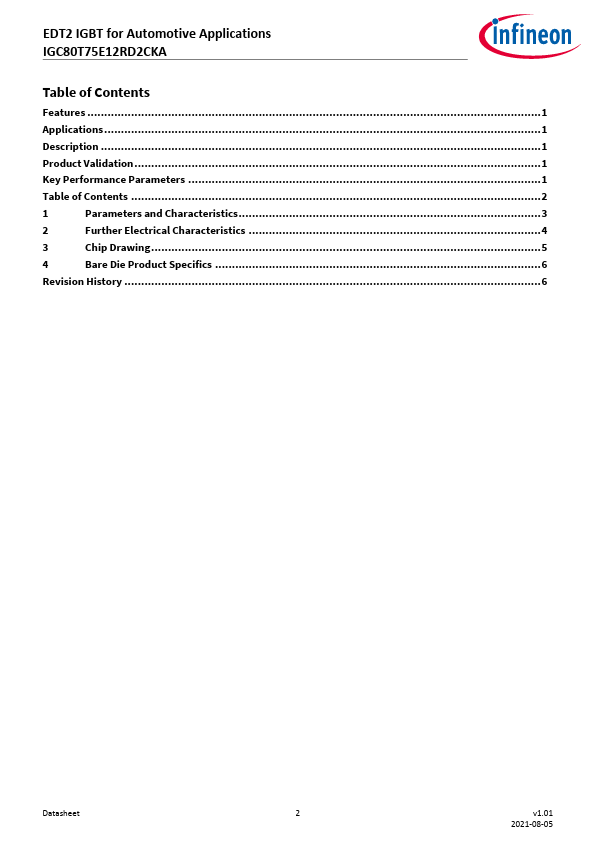

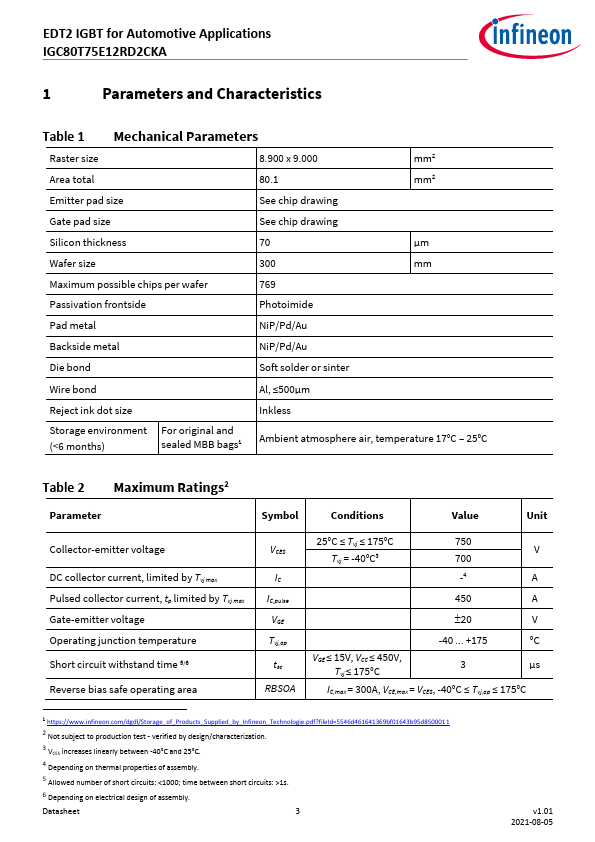

IGC80T75E12RD2CKA Datasheet Preview Page 2 IGC80T75E12RD2CKA Datasheet Preview Page 3
