IM241-S6T2B - IGBT

Infineon

IM241-S6T2B Datasheet Preview — Preview of IM241-S6T2B PDF

Datasheet Details

Part number	IM241-S6T2B
Manufacturer	Infineon ↗
File Size	801.80 KB
Description	IGBT
Datasheet	IM241-S6T2B-Infineon.pdf

IM241-S6T2B Product details

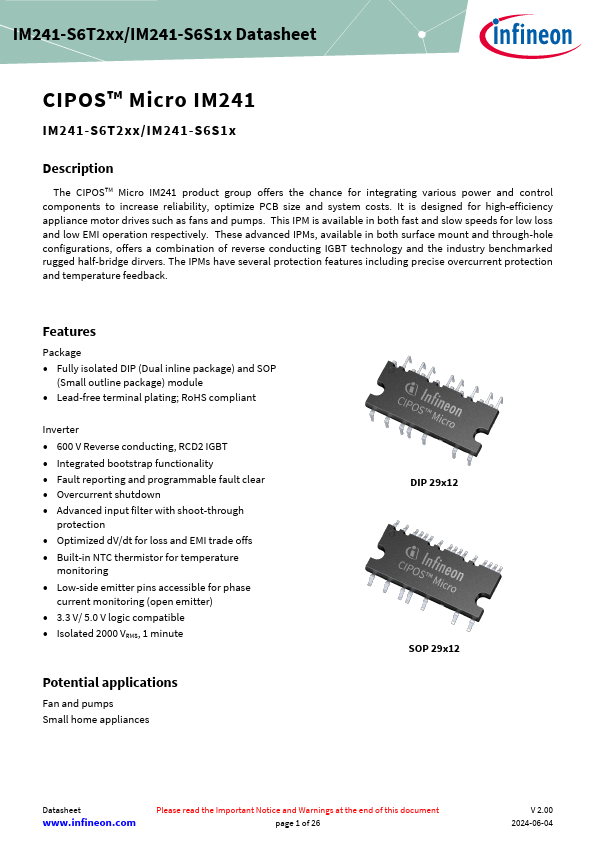

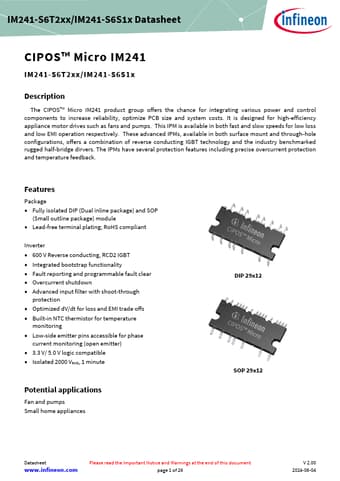

Description

The CIPOSTM Micro IM241 product group offers the chance for integrating various power and control components to increase reliability, optimize PCB size and system costs.

Features

including precise overcurrent protection and temperature feedback. Features Package.
Fully isolated DIP (Dual inline package) and SOP (Small outline package) module.
Lead-free terminal plating; RoHS compliant Inverter.
600 V Reverse conducting, RCD2 IGBT.
Integrated bootstrap functionality.
Fault reporting and programmable fault clear.
Overcurrent shutdown.
Advanced input filter with shoot-through protection.
Optimized dV/d.
