IPD50N06S4L-12 - Power Transistor

Infineon

📥 Download Datasheet

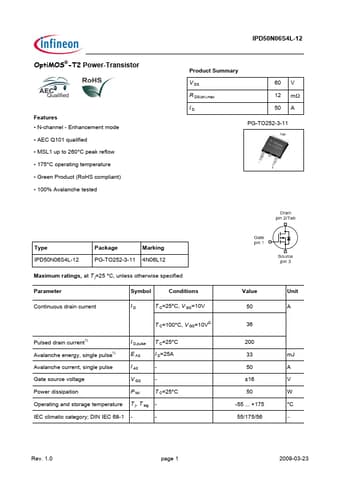

IPD50N06S4L-12 Datasheet Preview — Preview of IPD50N06S4L-12 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD50N06S4L-12
Manufacturer	Infineon ↗
File Size	159.97 KB
Description	Power Transistor
Datasheet	IPD50N06S4L-12-Infineon.pdf

IPD50N06S4L-12 Product details

Features

N-channel - Enhancement mode.
AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPD50N06S4L-12 Product Summary V DS R DS(on),max ID 60 V 12 mΩ 50 A PG-TO252-3-11 Type IPD50N06S4L-12 Package Marking PG-TO252-3-11 4N06L12 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain current I D T C=25°C, V G.
