Datasheet4U.com

IPI80P03P4L-04 - Power-Transistor

Infineon

📥 Download Datasheet

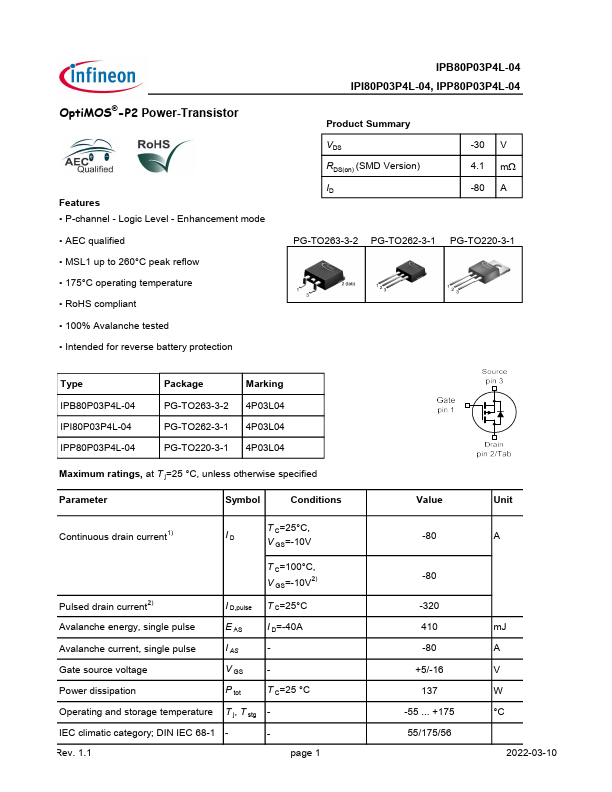

IPI80P03P4L-04 Datasheet Preview — Preview of IPI80P03P4L-04 PDF

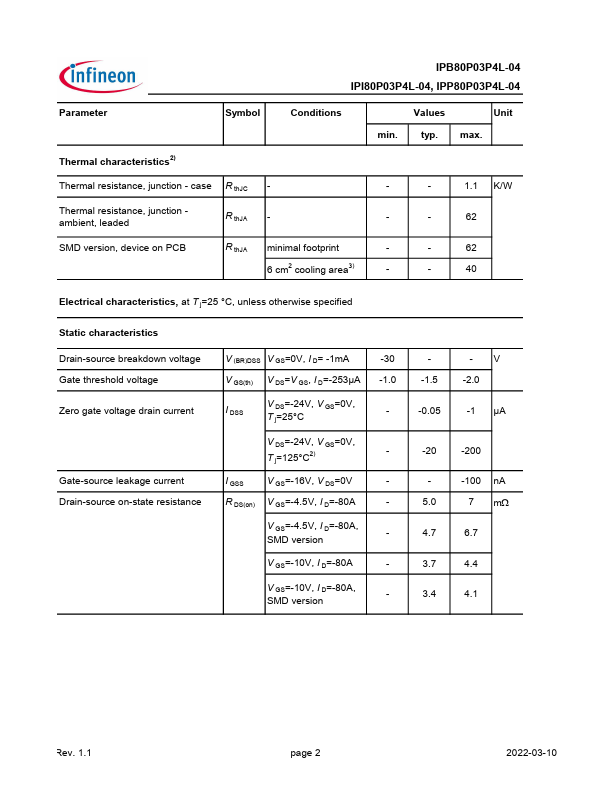

datasheet Preview Page 2

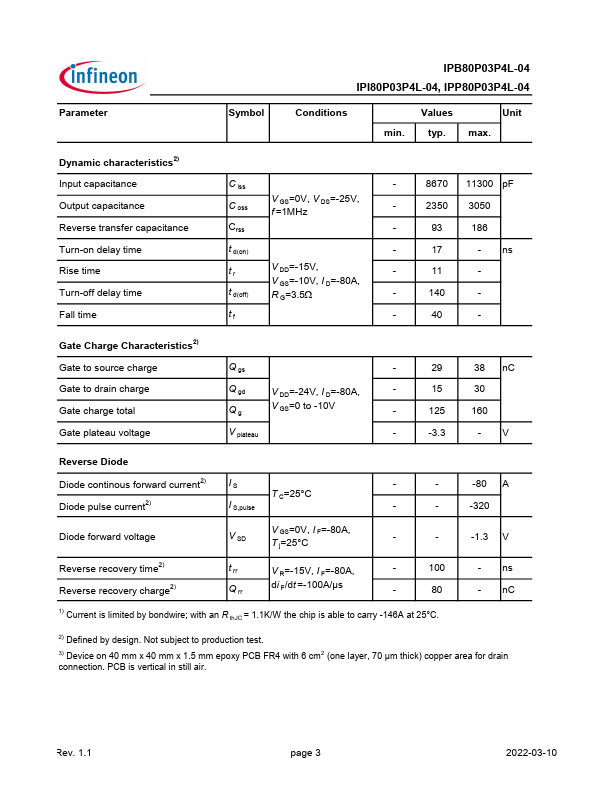

datasheet Preview Page 3

Datasheet Details

Part number	IPI80P03P4L-04
Manufacturer	Infineon ↗
File Size	693.52 KB
Description	Power-Transistor
Datasheet	IPI80P03P4L-04-Infineon.pdf

IPI80P03P4L-04 Product details

Features

P-channel - Logic Level - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
RoHS compliant.
100% Avalanche tested.
Intended for reverse battery protection IPB80P03P4L-04 IPI80P03P4L-04, IPP80P03P4L-04 Product Summary VDS RDS(on) (SMD Version) ID -30 V 4.1 mW -80 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB80P03P4L-04 IPI80P03P4L-04 IPP80P03P4L-04 Package PG-TO263-3-2 PG-TO262-3-1.
