IPP90N06S4L-04 - Power-Transistor

Infineon

📥 Download Datasheet

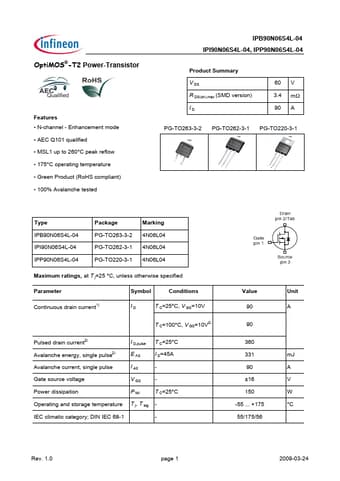

IPP90N06S4L-04 Datasheet Preview — Preview of IPP90N06S4L-04 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPP90N06S4L-04
Manufacturer	Infineon ↗
File Size	166.15 KB
Description	Power-Transistor
Datasheet	IPP90N06S4L-04-Infineon.pdf

IPP90N06S4L-04 Product details

Features

N-channel - Enhancement mode.
AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPB90N06S4L-04 IPI90N06S4L-04, IPP90N06S4L-04 Product Summary V DS R DS(on),max (SMD version) ID 60 V 3.4 mΩ 90 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB90N06S4L-04 IPI90N06S4L-04 IPP90N06S4L-04 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N06L04 4N06L04 4.
