IQE050N08NM5CGSC, 80V MOSFET

IQE050N08NM5CGSC MOSFET OptiMOSTM 5 Power-Transistor, 80 V .

datasheet Preview Page 1 from Datasheet4u.com

IQE050N08NM5CGSC-Infineon.pdf

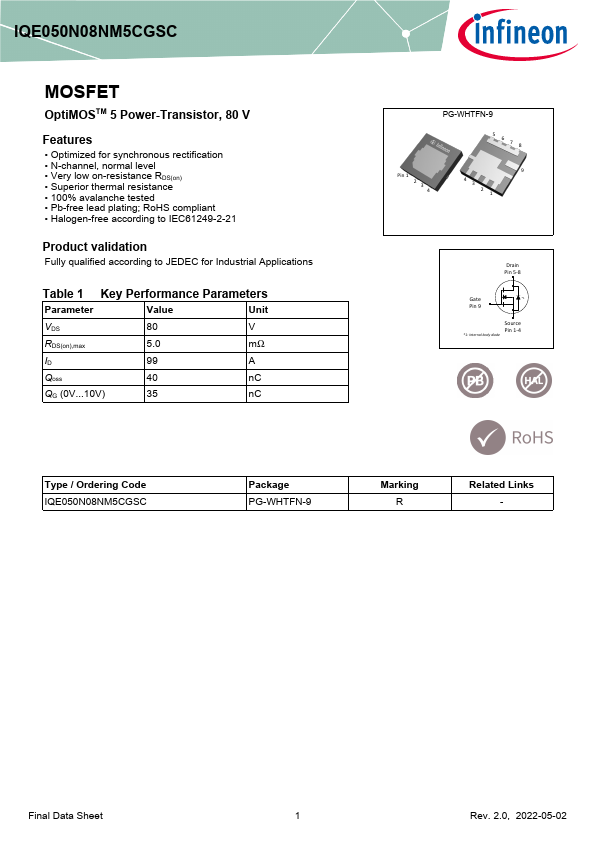

IQE050N08NM5CGSC Datasheet Preview — Preview of IQE050N08NM5CGSC PDF

Datasheet Details

Part number:

IQE050N08NM5CGSC

Manufacturer:

Infineon ↗

File Size:

1.56 MB

Description:

80V MOSFET

Features

* Optimized for synchronous rectification
* N-channel, normal level
* Very low on-resistance RDS(on)
* Superior thermal resistance
* 100% avalanche tested
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Product

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 80 V RDS(on),max 5.0 mΩ ID 99 A Qoss 40 nC QG (0V10V) 35 nC PG-WHTFN-9 5 678 Pin 1 2 3 4 9 4 3 2 1 Drain Pin 5-8 Gate
* 1 Pin 9 Source Pin 1-4
* 1: Internal body diode Type / Ordering Code IQE050N08NM5C
