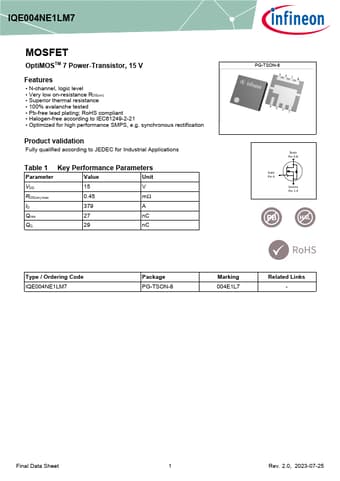

IQE004NE1LM7 Datasheet, Mosfet, Infineon

IQE004NE1LM7 Features

• Mosfet
• N-channel, logic level
• Very low on-resistance RDS(on)
• Superior thermal resistance
• 100% avalanche tested
• Pb-free lead plating; RoHS comp

PDF File Details

Part number:

IQE004NE1LM7

Manufacturer:

Infineon ↗

File Size:

0.99MB

Download:

📄 Datasheet

Description:

Mosfet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

IQE004NE1LM7 Application

• Applications Table 1 Key Performance Parameters Parameter Value Unit VDS 15 V RDS(on),max 0.45 mΩ ID 379 A Qoss 27 nC QG 29 n
