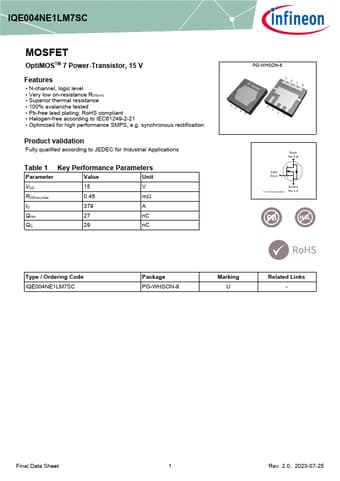

IQE004NE1LM7SC Datasheet, Mosfet, Infineon

IQE004NE1LM7SC Features

• Mosfet
• N-channel, logic level
• Very low on-resistance RDS(on)
• Superior thermal resistance
• 100% avalanche tested
• Pb-free lead plating; RoHS comp

PDF File Details

Part number:

IQE004NE1LM7SC

Manufacturer:

Infineon ↗

File Size:

1.26MB

Download:

📄 Datasheet

Description:

Mosfet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

IQE004NE1LM7SC Application

• Applications Table 1 Key Performance Parameters Parameter Value Unit VDS 15 V RDS(on),max 0.45 mΩ ID 379 A Qoss 27 nC QG 29 n
