IQE006NE2LM5CG, 25V MOSFET

IQE006NE2LM5CG MOSFET OptiMOSTM 5 Power-Transistor, 25 V .

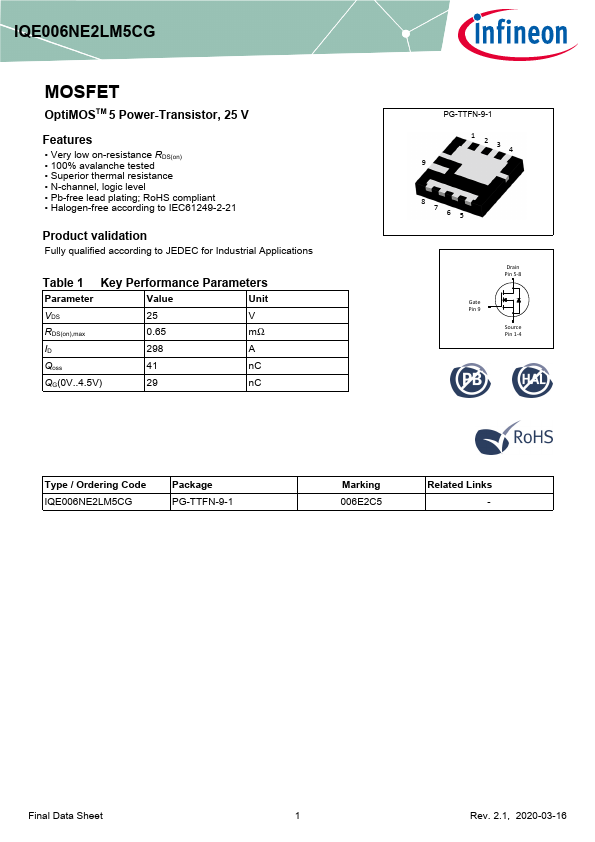

datasheet Preview Page 1 from Datasheet4u.com

IQE006NE2LM5CG-Infineon.pdf

IQE006NE2LM5CG Datasheet Preview — Preview of IQE006NE2LM5CG PDF

Datasheet Details

Part number:

IQE006NE2LM5CG

Manufacturer:

Infineon ↗

File Size:

1.00 MB

Description:

25V MOSFET

Features

* Very low on-resistance RDS(on)
* 100% avalanche tested
* Superior thermal resistance
* N-channel, logic level
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Product validation Fully qualified according to JEDEC for I

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 25 V RDS(on),max 0.65 mΩ ID 298 A Qoss 41 nC QG(0V. .4.5V) 29 nC PG-TTFN-9-1 1 234 9 8765 Drain Pin 5-8 Gate Pin 9 Source Pin 1-4 Type / Ordering Code IQE006NE2LM5CG Package PG-TTFN-9-1 Marking 006E2C5 Related Lin
