IQE006NE2LM5SC, MOSFET

IQE006NE2LM5SC MOSFET OptiMOSTM 5 Power-Transistor, 25 V .

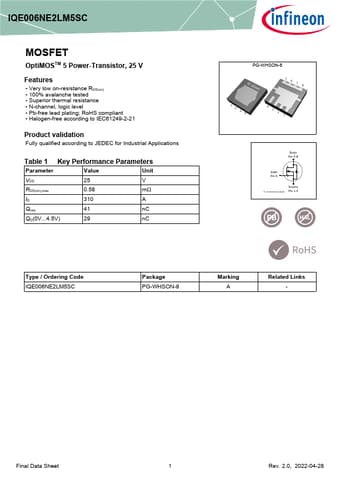

datasheet Preview Page 1 from Datasheet4u.com

IQE006NE2LM5SC-Infineon.pdf

IQE006NE2LM5SC Datasheet Preview — Preview of IQE006NE2LM5SC PDF

Datasheet Details

Part number:

IQE006NE2LM5SC

Manufacturer:

Infineon ↗

File Size:

1.60 MB

Description:

MOSFET

Features

* Very low on-resistance RDS(on)
* 100% avalanche tested
* Superior thermal resistance
* N-channel, logic level
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Product validation Fully qualified according to JEDEC for I

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 25 V RDS(on),max 0.58 mΩ ID 310 A Qoss 41 nC QG(0V4.5V) 29 nC PG-WHSON-8 5 6 7 8 1 2 3 4 4 3 2 1 Drain Pin 5-8 Gate
* 1 Pin 4 Source
* 1: Internal body diode Pin 1-3 Type / Ordering Code IQE006NE2LM5SC
