IR3826

23A single-voltage synchronous Buck regulator

Infineon

IR3826 Features

* Single 5 V to 17 V application or Wide Input Voltage Range from 1.0 V to 17 V with external Vcc

* Precision Reference Voltage (0.6 V ± 0.6%) for Output Voltage Range: 0.6 V to 0.86×Vin

* Enhanced Line/Load Regulation with Feed-Forward

* Programmable Switching Frequency up to 1.5 MH

IR3826 General Description

The IR3826 is an easy-to-use, fully integrated and highly efficient dc-dc regulator. The onboard PWM controller and OptiMOS™ FETs with integrated bootstrap diode make the IR a small footprint solution, providing high-efficiency power delivery. The IR3826 is a versatile regulator, operating with .

IR3826 Datasheet (2.15 MB)

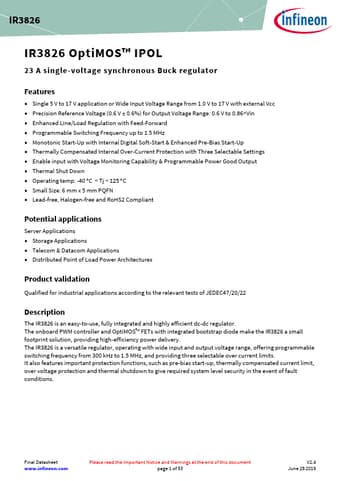

IR3826 Datasheet Preview — Preview of IR3826 PDF

Datasheet Details

Part number:

IR3826

Manufacturer:

Infineon ↗

File Size:

2.15 MB

Description:

23a single-voltage synchronous buck regulator.
