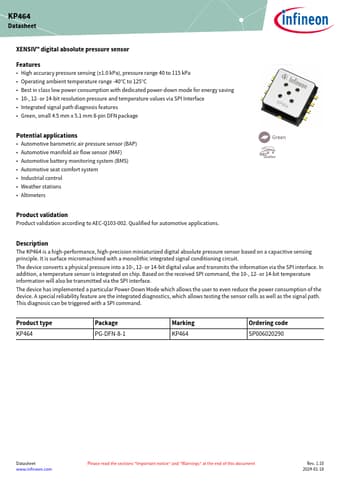

KP464 Datasheet - Infineon

digital absolute pressure sensor

KP464 Features

* High accuracy pressure sensing (±1.0 kPa), pressure range 40 to 115 kPa

* Operating ambient temperature range -40°C to 125°C

* Best in class low power consumption with dedicated power-down mode for energy saving

* 10-, 12- or 14-bit resolution pressure and temperatu

KP464 General Description

The KP464 is a high-performance, high-precision miniaturized digital absolute pressure sensor based on a capacitive sensing principle. It is surface micromachined with a monolithic integrated signal conditioning circuit. The device converts a physical pressure into a 10-, 12- or 14-bit digital value.

KP464 Datasheet (2.85 MB)
