KP461 Polypropylene Film Foil Capacitors

Tangent of loss angle: C ≤ 1000 pF 1000 pF < C ≤ 5000 pF 5000 pF < C ≤ 20000 pF 20000 pF < C ≤ 47000 pF C > 47000 pF Rated voltage pulse slope (dU/dt)R R between leads: at 10 V; 1 minute at 100 V; 1 minute R between interconnecting leads and case; at 10 V; 1 minute at 100 V; 1 minute at 100 V; 1 min.

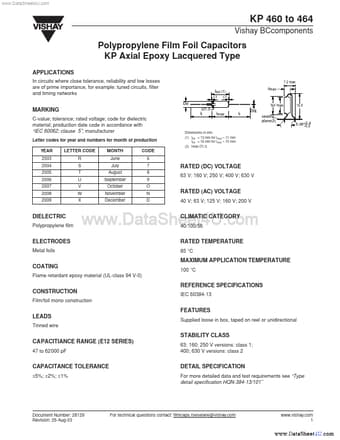

www.DataSheet4U.com KP 460 to 464 Vishay BCcomponents Polypropylene Film Foil Capacitors KP Axial Epoxy Lacquered Type APPLICATIONS In circuits where close tolerance, reliability and low losses are of prime importance, for example: tuned circuits, filter and timing networks 168x12(halfpage) 7.2 max dmax ltot (1) ≤1 ≤1 Ød Ø1.3 lt ltot lmax 16.5 MARKING C-value; tolerance; rated voltage; code for dielectric material; production date code in accordance with “IEC 60062; clause 5”; manufacturer.

KP461 Features

* LEADS Tinned wire Supplied loose in box, taped on reel or unidirectional STABILITY CLASS CAPACITIANCE RANGE (E12 SERIES) 47 to 62000 pF 63; 160; 250 V versions: class 1; 400; 630 V versions: class 2 CAPACITANCE TOLERANCE ±5%; ±2%; ±1% DETAIL SPECIFICATION For more detailed data and test requireme
