KP464, KP460 Polypropylene Film Foil Capacitors

Vishay Siliconix

Description

www.DataSheet4U.com KP 460 to 464 Vishay BCcomponents Polypropylene Film Foil Capacitors KP Axial Epoxy Lacquered Type APPLICATIONS In circuits wher.
Tangent of loss angle: C ≤ 1000 pF 1000 pF < C ≤ 5000 pF 5000 pF < C ≤ 20000 pF 20000 pF < C ≤ 47000 pF C > 47000 pF Rated voltage pulse slope (dU/dt).

📥 Download Datasheet

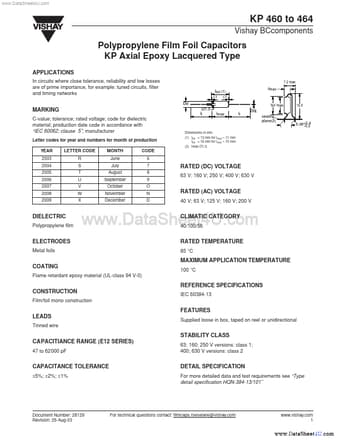

KP464 Datasheet Preview — This datasheet PDF includes multiple part numbers: KP464, KP460. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: KP464, KP460
Manufacturer: Vishay ↗ Siliconix
File Size: 283.09 KB
Datasheet: KP460_VishaySiliconix.pdf
Description: Polypropylene Film Foil Capacitors
Note: This datasheet PDF includes multiple part numbers: KP464, KP460.
Please refer to the document for exact specifications by model.

Features

* LEADS Tinned wire Supplied loose in box, taped on reel or unidirectional STABILITY CLASS CAPACITIANCE RANGE (E12 SERIES) 47 to 62000 pF 63; 160; 250 V versions: class 1; 400; 630 V versions: class 2 CAPACITANCE TOLERANCE ±5%; ±2%; ±1% DETAIL SPECIFICATION For more detailed data and test requireme

Applications

* In circuits where close tolerance, reliability and low losses are of prime importance, for example: tuned circuits, filter and timing networks 168x12(halfpage) 7.2 max dmax ltot (1) ≤1 ≤1 Ød Ø1.3 lt ltot lmax 16.5 MARKING C-value; tolerance; rated voltage; code for dielectric material; productio
