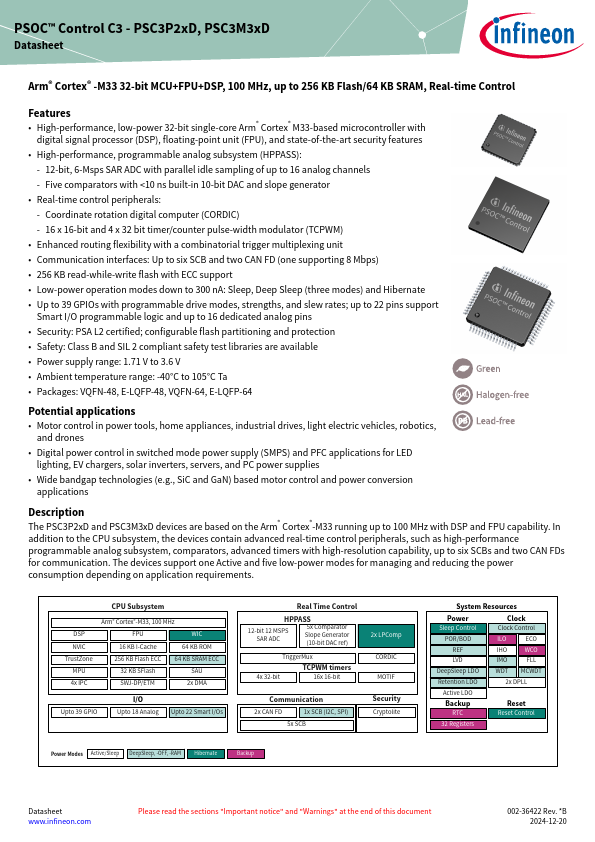

PSC3P2EDLHQ1, PSC3P2EDLGQ1 Datasheet - Infineon

PSC3P2EDLHQ1 32-bit MCU+FPU+DSP

The PSC3P2xD and PSC3M3xD devices are based on the Arm® Cortex®-M33 running up to 100 MHz with DSP and FPU capability. In addition to the CPU subsystem, the devices contain advanced real-time control peripherals, such as high-performance programmable analog subsystem, comparators, advanced timers wi.

PSC3P2EDLHQ1 Features

* High-performance, low-power 32-bit single-core Arm® Cortex® M33-based microcontroller with digital signal processor (DSP), floating-point unit (FPU), and state-of-the-art security features

* High-performance, programmable analog subsystem (HPPASS): - 12-bit, 6-Msps SAR ADC with par

PSC3P2EDLGQ1-Infineon.pdf
