PXE1610CDN VR13 and VR12.5 Multi-rail / Multiphase Digital Controllers

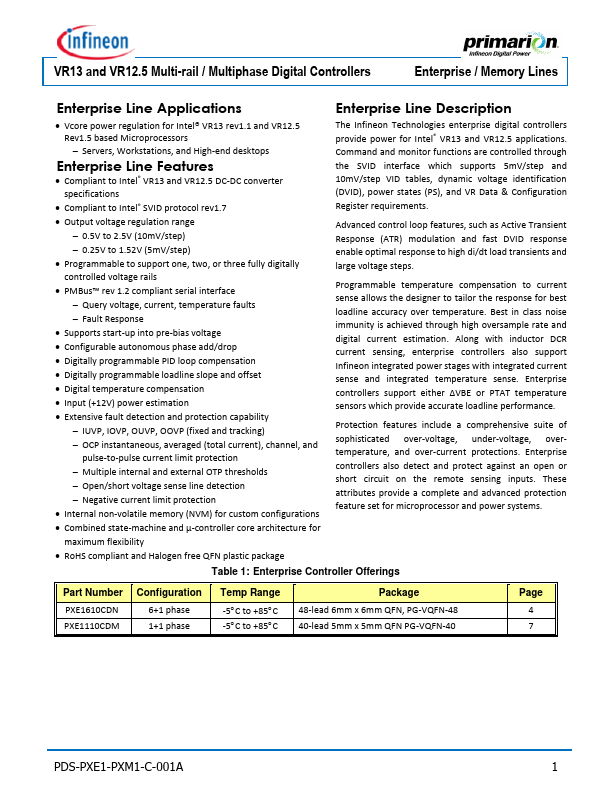

📥 Download Datasheet  Datasheet Preview Page 1

Description

VR13 and VR12.5 Multi-rail / Multiphase Digital Controllers Enterprise / Memory Lines Enterprise Line Applications Enterprise Line .
Vcore power regulation for Intel® VR13 rev1.

📥 Download Datasheet

Preview of PXE1610CDN PDF

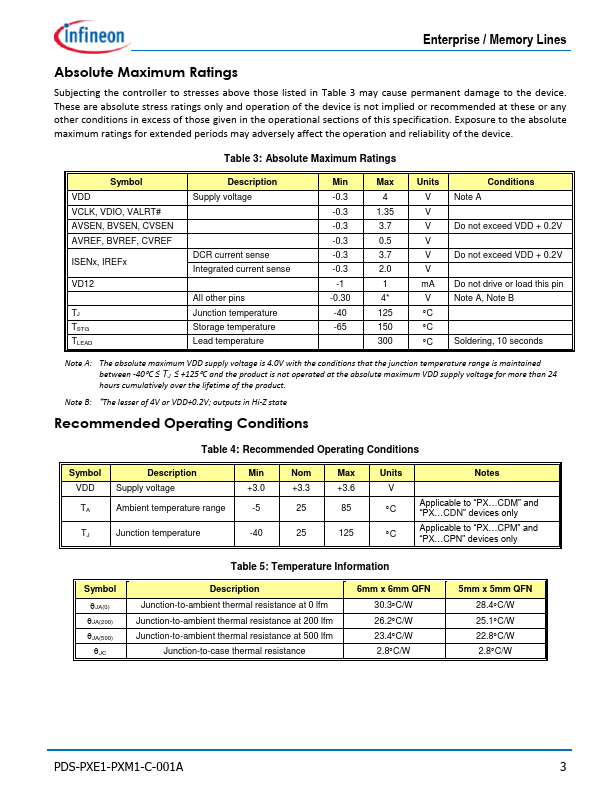

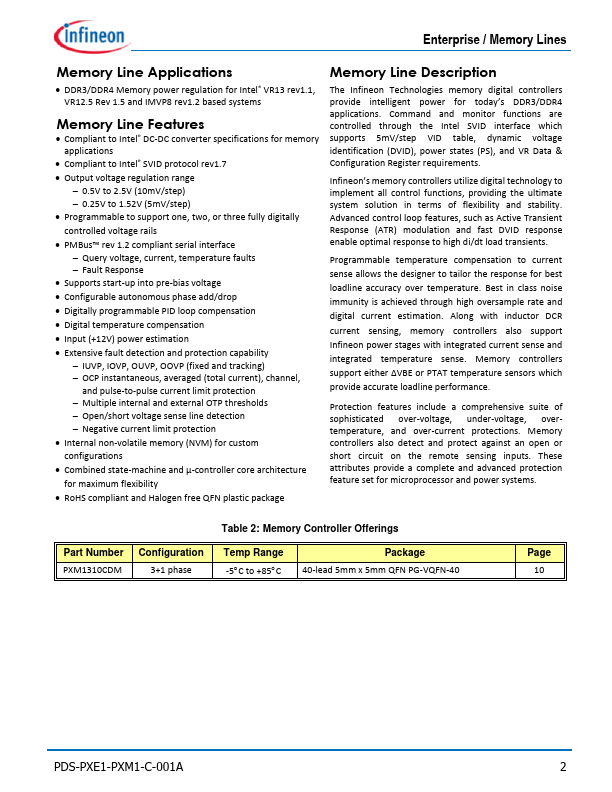

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PXE1610CDN
Manufacturer
Infineon ↗
File Size
1.33 MB
Datasheet
PXE1610CDN-Infineon.pdf
Description
VR13 and VR12.5 Multi-rail / Multiphase Digital Controllers

Features

* Compliant to Intel® VR13 and VR12.5 DC-DC converter specifications
* Compliant to Intel® SVID protocol rev1.7
* Output voltage regulation range  0.5V to 2.5V (10mV/step)  0.25V to 1.52V (5mV/step)
* Programmable to support one, two, or three fully digitally controlled voltage rai
