S26KL128S, S26KL512S - 128Mb (16MB) HYPER FLASH

Infineon

S26KL128S Datasheet Preview — This datasheet PDF includes multiple part numbers: S26KL128S, S26KL512S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	S26KL128S, S26KL512S
Manufacturer	Infineon ↗
File Size	1.54 MB
Description	128Mb (16MB) HYPER FLASH
Datasheet	S26KL512S-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: S26KL128S, S26KL512S. Please refer to the document for exact specifications by model.

S26KL128S Product details

Description

1.1 DDR center aligned read strobe (DCARS) functionality 7 1.2 Error detection and correction functionality 7 2 Connection diagram10 2.1 FBGA 24-ball 5 × 5 array footprint 10 3 Signal description 11 4 HYPERBUS™ protocol

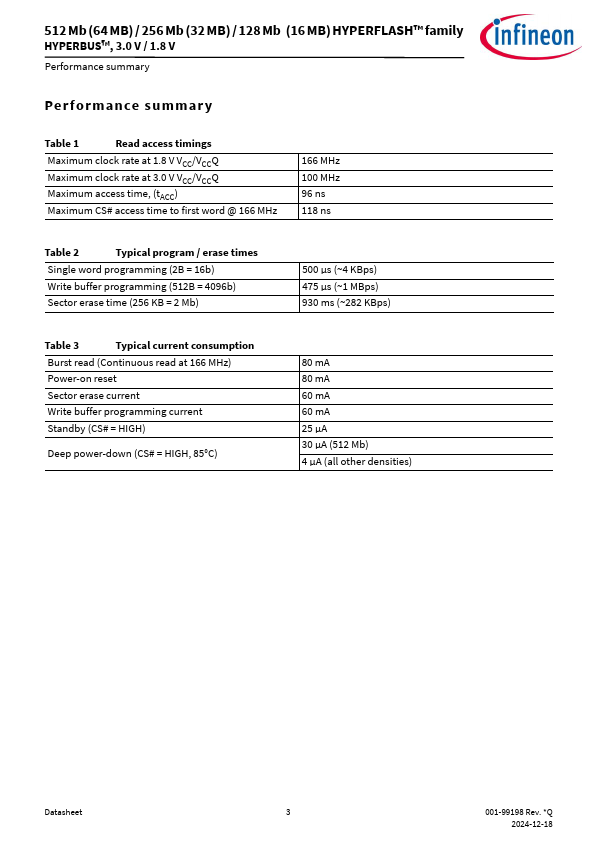

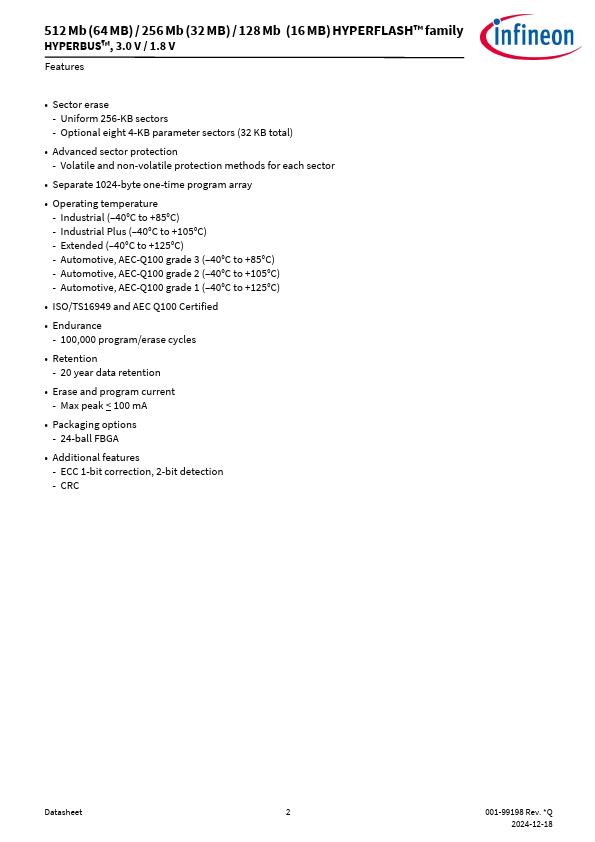

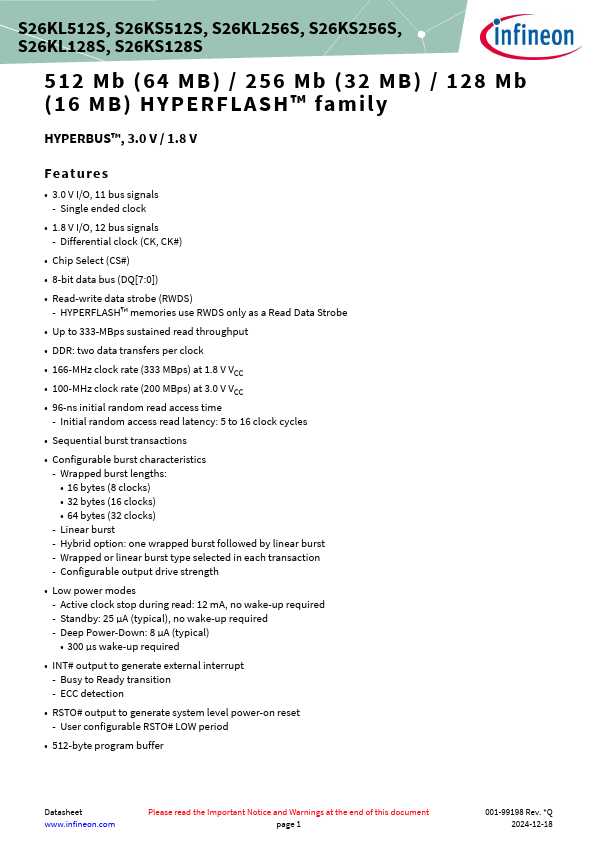

Features

3.0 V I/O, 11 bus signals - Single ended clock.
1.8 V I/O, 12 bus signals - Differential clock (CK, CK#).
Chip Select (CS#).
8-bit data bus (DQ[7:0]).
Read-write data strobe (RWDS) -.
