S26KS128S, S26KL512S Datasheet - Infineon

S26KS128S 128Mb (16MB) HYPER FLASH

1.1 DDR center aligned read strobe (DCARS) functionality 7 1.2 Error detection and correction functionality 7 2 Connection diagram10 2.1 FBGA 24-ball 5 × 5 array footprint 10 3 Signal description 11 4 HYPERBUS™ protocol .

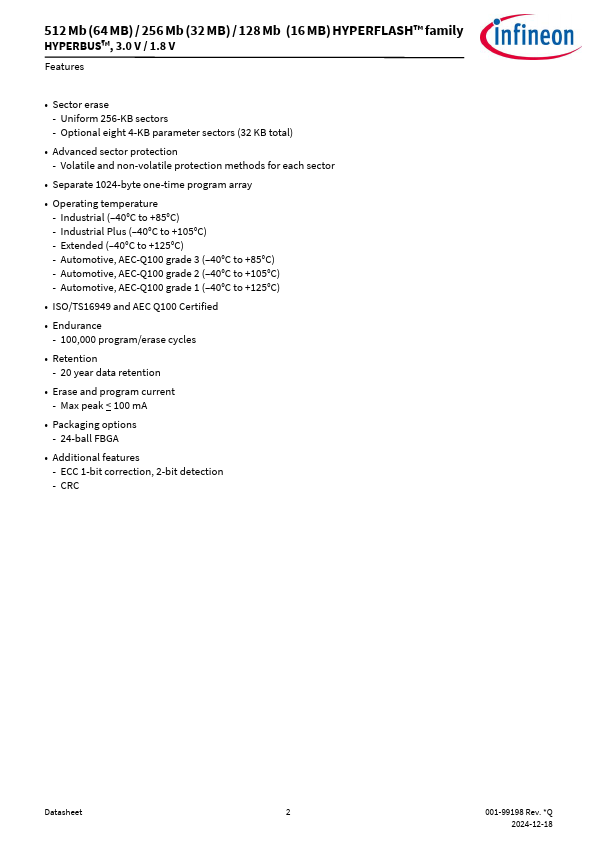

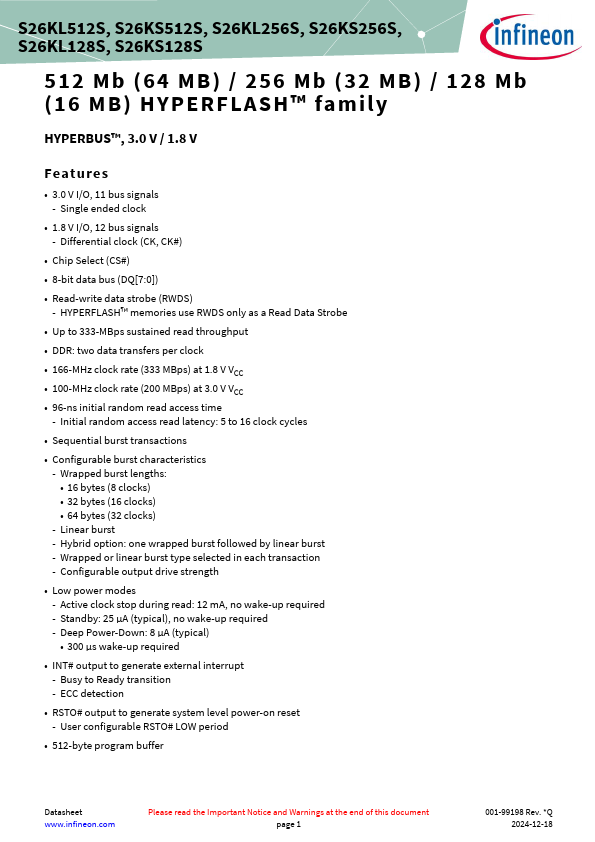

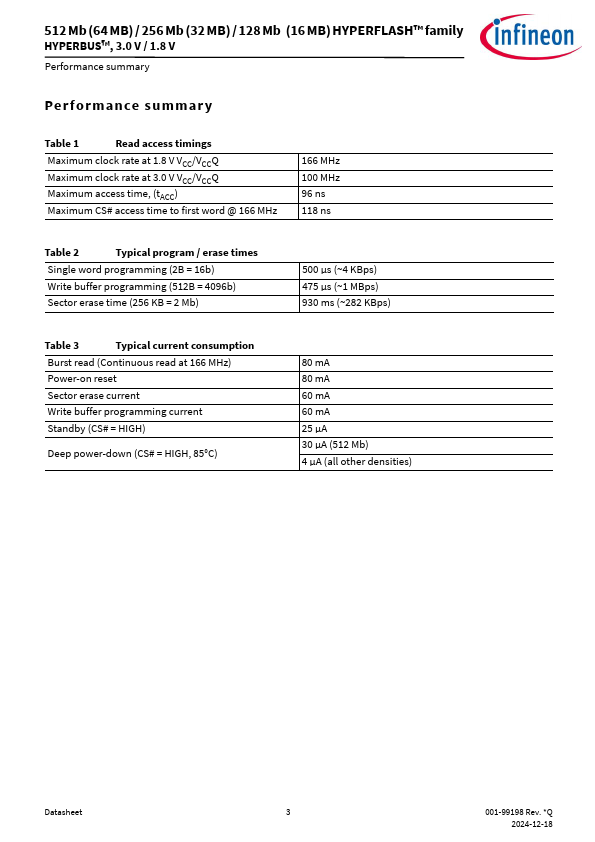

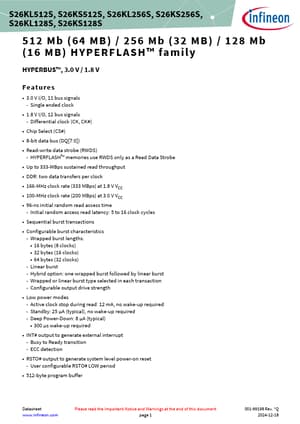

S26KS128S Features

* 3.0 V I/O, 11 bus signals - Single ended clock

* 1.8 V I/O, 12 bus signals - Differential clock (CK, CK#)

* Chip Select (CS#)

* 8-bit data bus (DQ[7:0])

* Read-write data strobe (RWDS) - HYPERFLASH™ memories use RWDS only as a Read Data Strobe

* Up t

S26KL512S-Infineon.pdf

S26KS128S Datasheet Preview — This datasheet PDF includes multiple part numbers: S26KS128S, S26KL512S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S26KS128S, S26KL512S

Manufacturer:

Infineon ↗

File Size:

1.54 MB

Description:

128mb (16mb) hyper flash.

Note:

This datasheet PDF includes multiple part numbers: S26KS128S, S26KL512S.
Please refer to the document for exact specifications by model.
