TLE42744DV50 Datasheet - Infineon

TLE42744DV50 - 5V low dropout linear voltage regulator

The OPTIREG™ linear TLE42744DV50 is a monolithic integrated low dropout voltage regulator for load currents up to 400 mA.

An input voltage up to 40 V is regulated to VQ,nom = 5 V with a precision of ±2%.

The device is designed for the harsh environment of automotive applications.

Therefore, it is pr

TLE42744DV50 Features

* Very low current consumption

* Output voltages 5 V ±2%

* Output current up to 400 mA

* Very low dropout voltage

* Output current limitation

* Reverse-polarity protection

* Overtemperature shutdown

* Wide temperature range from -40°C u

TLE42744DV50-Infineon.pdf

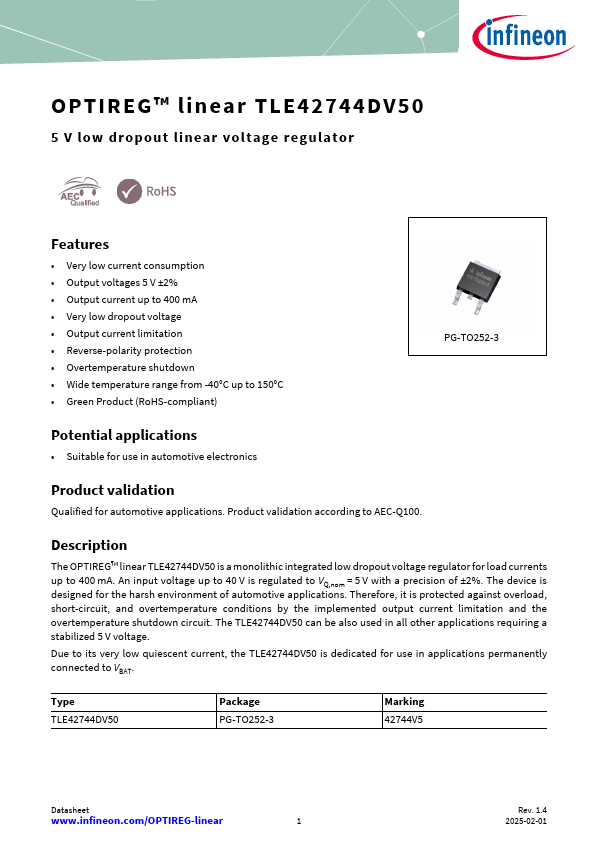

Preview of TLE42744DV50 PDF

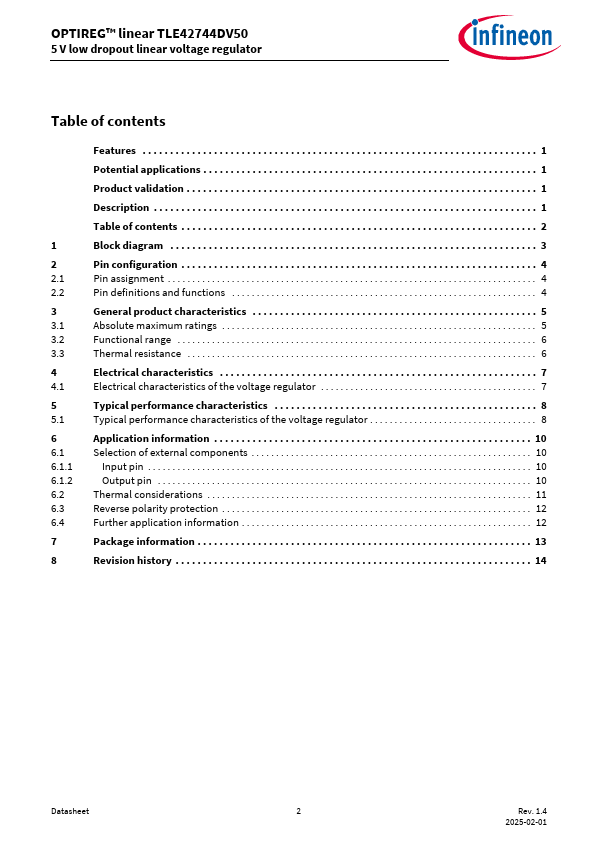

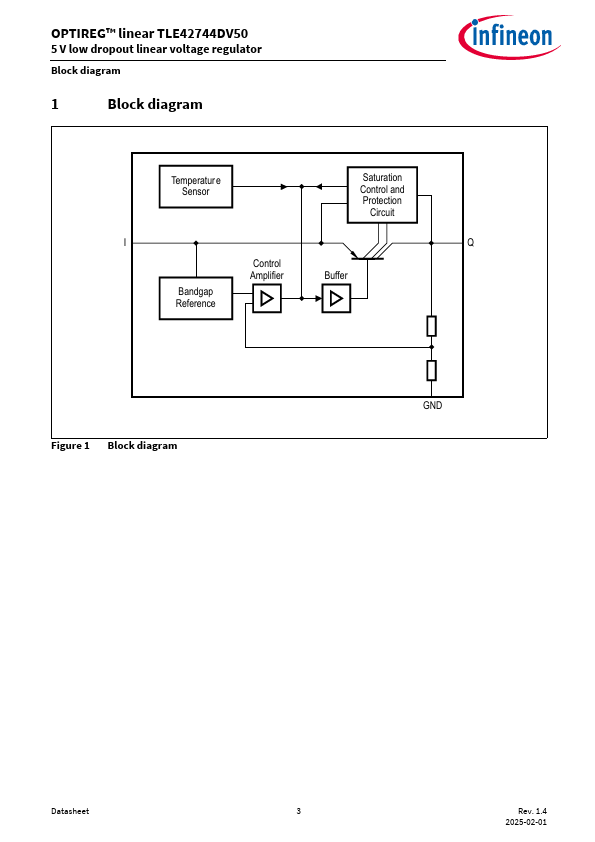

TLE42744DV50 Datasheet Preview Page 2 TLE42744DV50 Datasheet Preview Page 3

Datasheet Details

Part number:

TLE42744DV50

Manufacturer:

Infineon ↗

File Size:

688.23 KB

Description:

5v low dropout linear voltage regulator.
