TLE4271-2

5-V Low-Drop Fixed Voltage Regulator

TLE4271-2 Features

* Output voltage tolerance ≤ ±2%

* Low-drop voltage

* Integrated overtemperature protection

* Reverse polarity protection

* Input voltage up to 42 V

* Overvoltage protection up to 65 V (≤ 400 ms)

* Short-circuit proof

* Suitable for use

TLE4271-2 General Description

The OPTIREG™ linear TLE4271-2 is functional and electrical identical to TLE4271. The device is a 5-V low drop fixed voltage regulator. The maximum input voltage is 42 V (65 V, ≤ 400 ms). Up to an input voltage of 26 V and for an output current up to 550 mA it regulates the output voltage within a 2%.

TLE4271-2 Datasheet (531.91 KB)

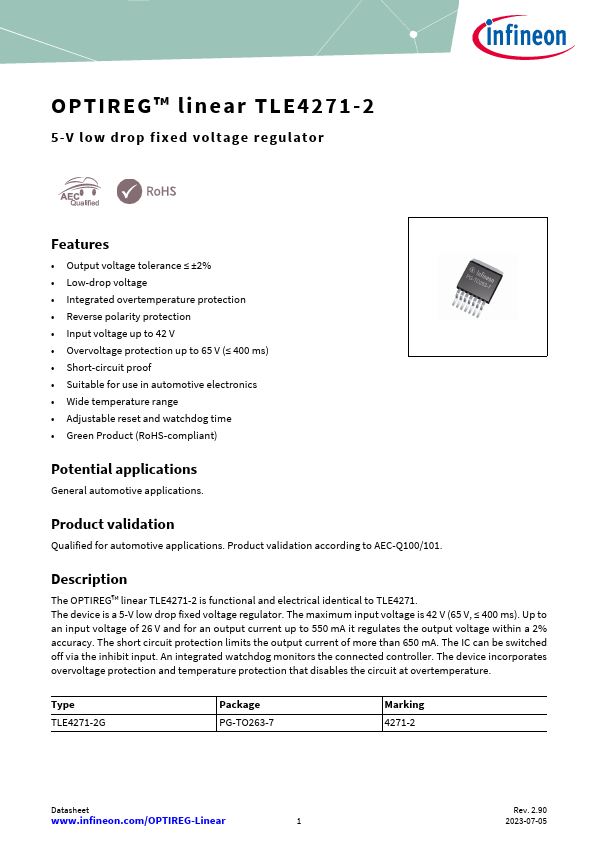

Preview of TLE4271-2 PDF

Datasheet Details

Part number:

TLE4271-2

Manufacturer:

Infineon ↗ Technologies AG

File Size:

531.91 KB

Description:

5-v low-drop fixed voltage regulator.

📁 Related Datasheet

TLE4271 5-V Low-Drop Fixed Voltage Regulator (Siemens Semiconductor Group)

TLE4270 5-V Low-Drop Fixed Voltage Regulator (Siemens Semiconductor Group)

TLE4270-2 5-V Low Drop Fixed Voltage Regulator (Infineon Technologies)

TLE4274 Low-Drop Voltage Regulator (Siemens Semiconductor Group)

TLE4274 Low Drop Voltage Regulator (Infineon)

TLE4274 LOW POWER VOLTAGE REGULATOR (IK Semiconductor)

TLE42744 Low Dropout Linear Voltage Regulator (Infineon Technologies)

TLE4275 5-V Low-Drop Voltage Regulator (Infineon Technologies AG)

TLE4275-Q1 5-V Low-Dropout Voltage Regulator (Texas Instruments)

TLE42754 Low Dropout Linear Fixed Voltage Regulator (Infineon Technologies)

TAGS

TLE4271-2 5-V Low-Drop Fixed Voltage Regulator Infineon Technologies AG

Image Gallery

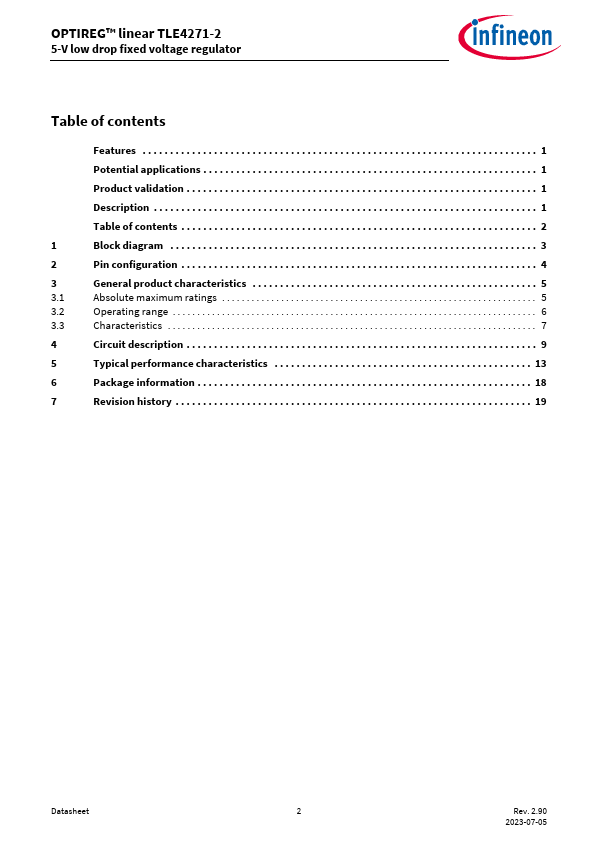

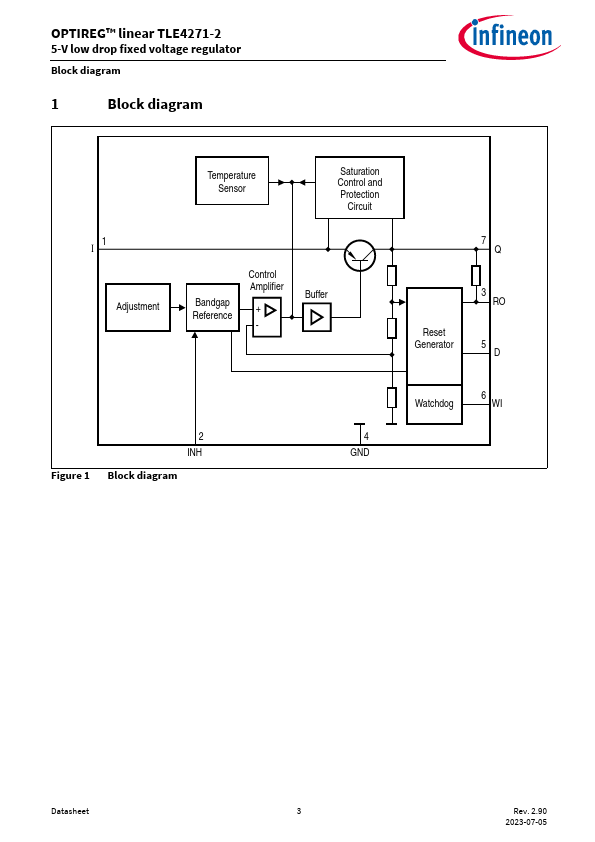

TLE4271-2 Datasheet Preview Page 2 TLE4271-2 Datasheet Preview Page 3
