TLE4286G Datasheet, Regulator, Infineon

TLE4286G Features

• Regulator
• 15 mA output current capability
• 1 µA current consumption in standby mode
• Low quiescent current consumption 60 µA in ON mode
• Inhibit input

PDF File Details

Part number:

TLE4286G

Manufacturer:

Infineon ↗

File Size:

230.04kb

Download:

📄 Datasheet

Description:

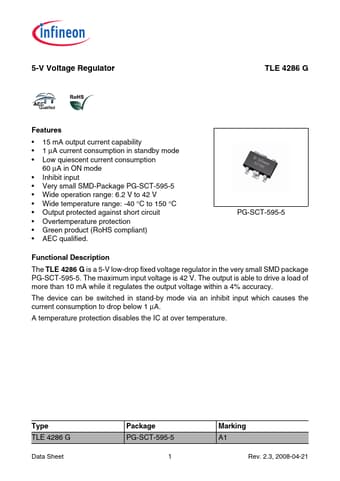

5-v voltage regulator. The TLE 4286 G is a 5-V low-drop fixed voltage regulator in the very small SMD package PG-SCT-595-5. The maximum input voltage is 42
