TLE4801 - inductive position sensors

Infineon

📥 Download Datasheet

TLE4801 Datasheet Preview — Preview of TLE4801 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TLE4801
Manufacturer	Infineon
File Size	2.09 MB
Description	inductive position sensors
Datasheet	TLE4801-Infineon.pdf

TLE4801 Product details

Description

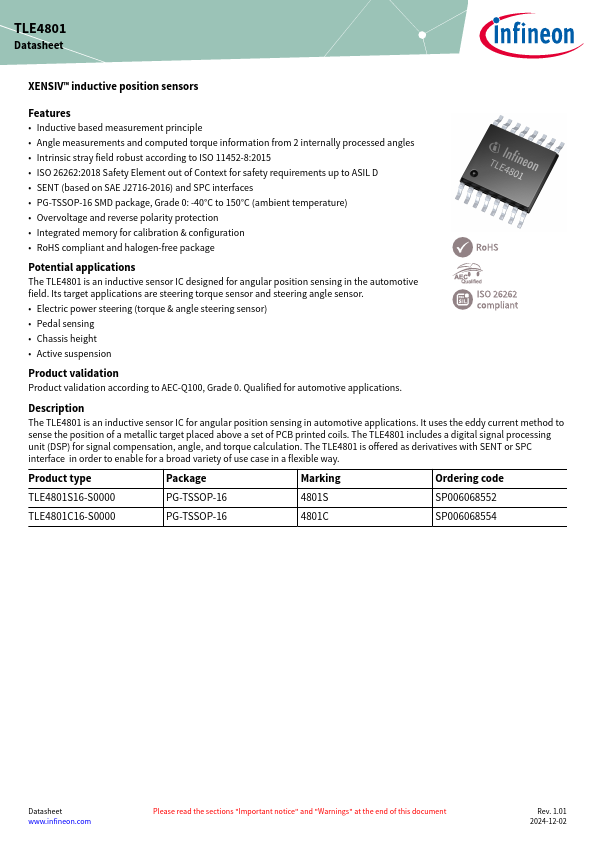

The TLE4801 is an inductive sensor IC for angular position sensing in automotive applications.

Features

Inductive based measurement principle.
Angle measurements and computed torque information from 2 internally processed angles.
Intrinsic stray field robust according to ISO 11452-8:2015.
ISO 26262:2018 Safety Element out of Context for safety requirements up to ASIL D.
SENT (based on SAE J2716-2016) and SPC interfaces.
PG-TSSOP-16 SMD package, Grade 0: -40°C to 150°C (ambient temperature).
Overvoltage and reverse polarity protection.
