TLE49SRI3 - Stray field robust angle sensor

Infineon

📥 Download Datasheet

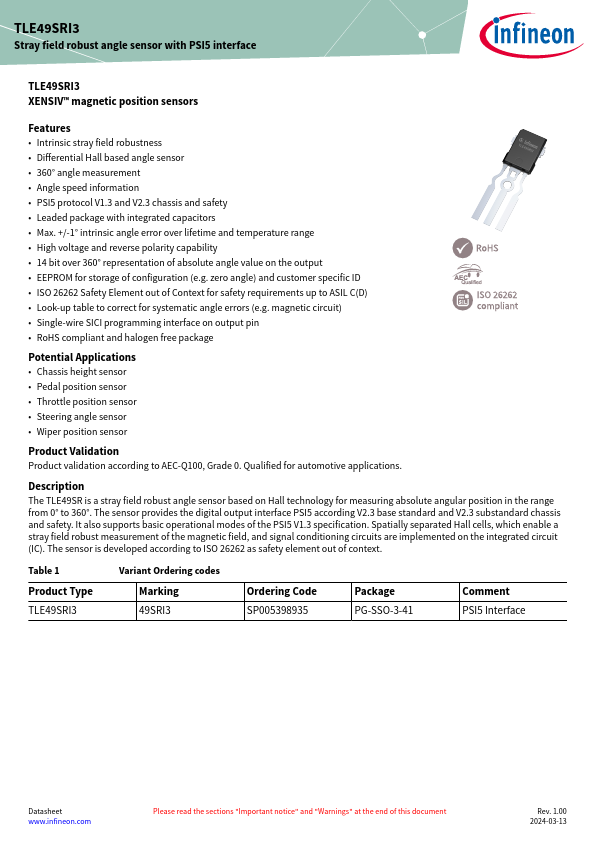

TLE49SRI3 Datasheet Preview — Preview of TLE49SRI3 PDF

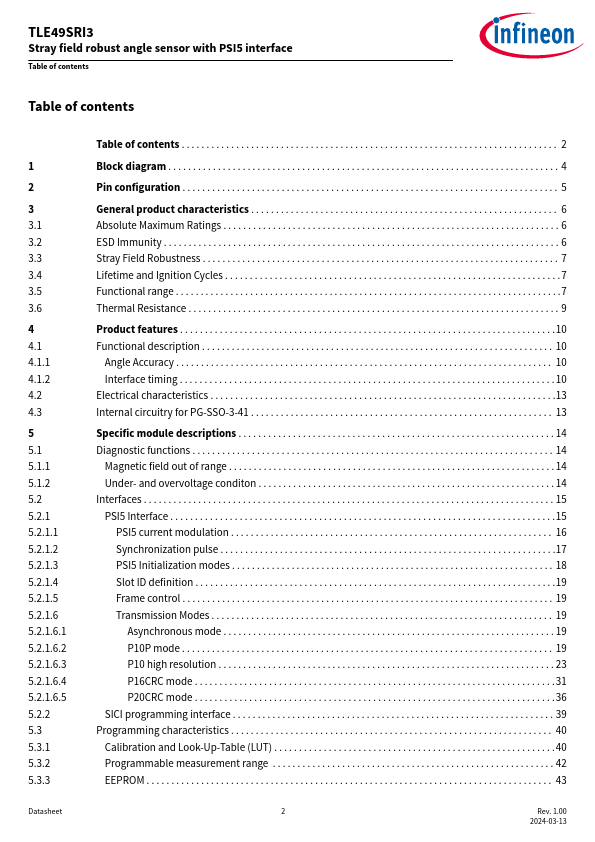

datasheet Preview Page 2

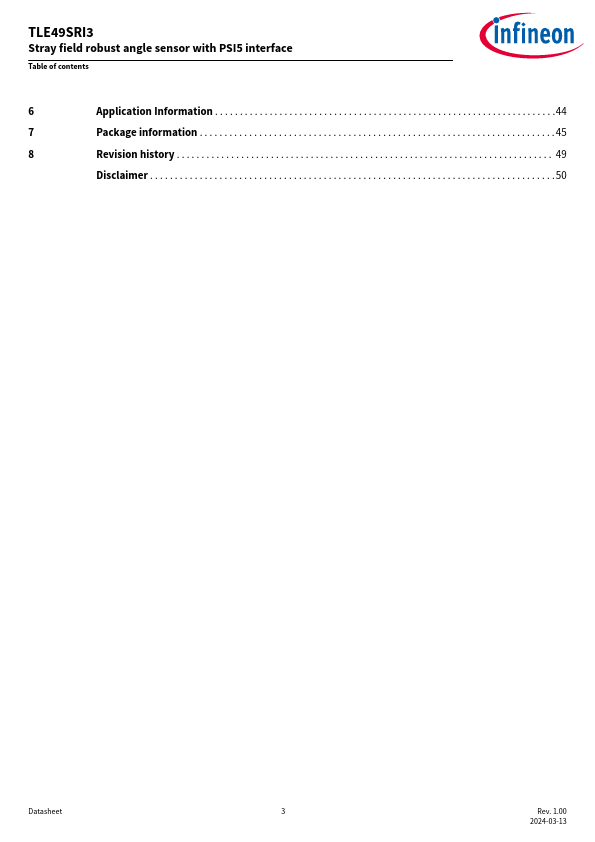

datasheet Preview Page 3

Datasheet Details

Part number	TLE49SRI3
Manufacturer	Infineon
File Size	1.12 MB
Description	Stray field robust angle sensor
Datasheet	TLE49SRI3-Infineon.pdf

TLE49SRI3 Product details

Description

The TLE49SR is a stray field robust angle sensor based on Hall technology for measuring absolute angular position in the range from 0° to 360°.

Features

Intrinsic stray field robustness.
Differential Hall based angle sensor.
360° angle measurement.
Angle speed information.
PSI5 protocol V1.3 and V2.3 chassis and safety.
Leaded package with integrated capacitors.
Max. +/-1° intrinsic angle error over lifetime and temperature range.
High voltage and reverse polarity capability.
14 bit over 360° representation of absolute angle value on the output.
EEPROM for.
