TLE75008-ESD SPI Driver

The TLE75008-ESD is an eight channel low-side power switch in PG-TSDSO-24 package providing embedded protective functions. It is specially designed to control relays and LEDs in automotive and industrial applications. A serial peripheral interface (SPI) is utilized for control and diagnosis of the l.

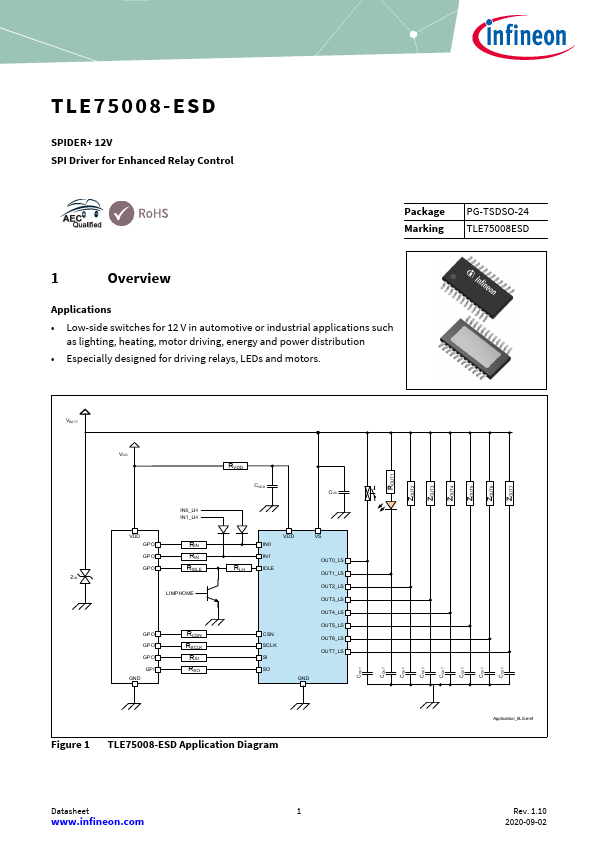

TLE75008-ESD SPIDER+ 12V SPI Driver for Enhanced Relay Control Package Marking PG-TSDSO-24 TLE75008ESD 1 Overview Applications Low-side switches for 12 V in automotive or industrial applications such as lighting, heating, motor driving, energy and power distribution Especially designed for driving relays, LEDs and motors. VBA TT ZVS VD D VDD GP O GP O GP O IN0_LH IN1_LH RIN RIN RIDLE LI MPHOME GP O GP O GP O GP I GND RCSN RSCLK RSI RSO RVDD CVDD CVS RLH IN0 I.

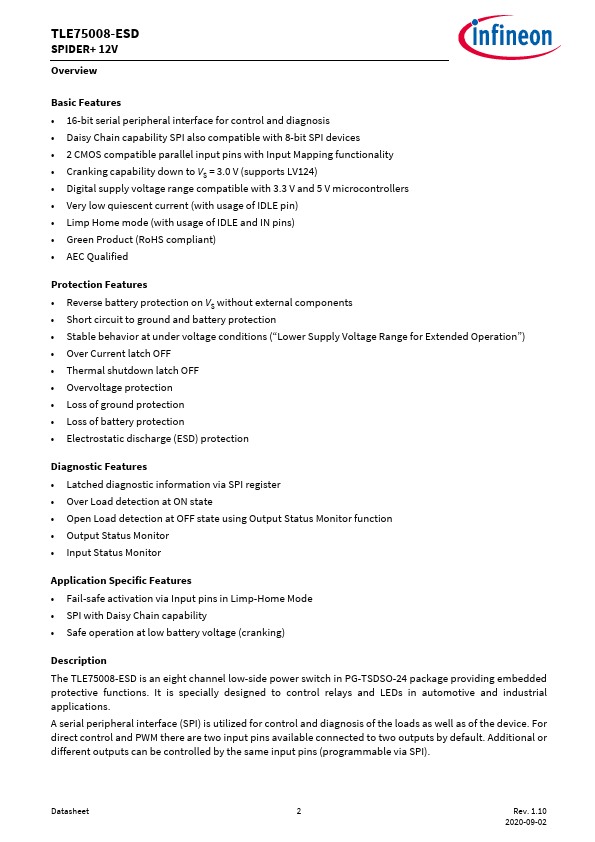

TLE75008-ESD Features

* 16-bit serial peripheral interface for control and diagnosis

* Daisy Chain capability SPI also compatible with 8-bit SPI devices

* 2 CMOS compatible parallel input pins with Input Mapping functionality

* Cranking capability down to VS = 3.0 V (supports LV124)

TLE75008-ESD Datasheet (849.73 KB)
