TLE75080-ESH Datasheet - Infineon

TLE75080-ESH - SPI Driver

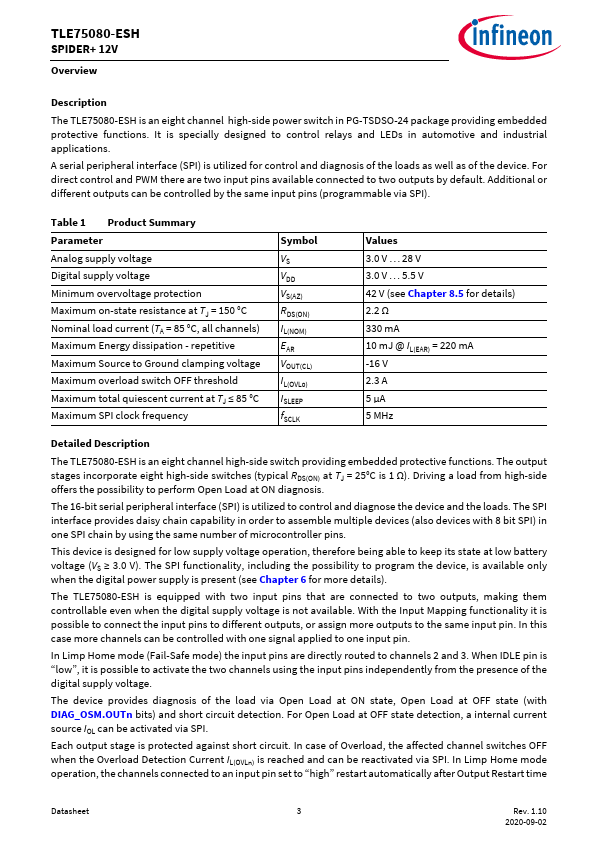

The TLE75080-ESH is an eight channel high-side power switch in PG-TSDSO-24 package providing embedded protective functions.

It is specially designed to control relays and LEDs in automotive and industrial applications.

A serial peripheral interface (SPI) is utilized for control and diagnosis of the

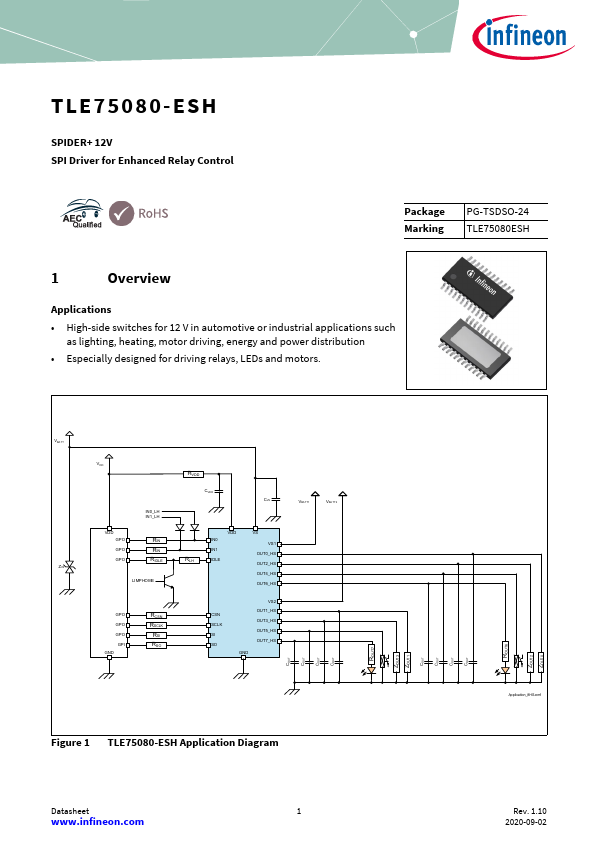

TLE75080-ESH SPIDER+ 12V SPI Driver for Enhanced Relay Control Package Marking PG-TSDSO-24 TLE75080ESH 1 Overview Applications High-side switches for 12 V in automotive or industrial applications such as lighting, heating, motor driving, energy and power distribution Especially designed for driving relays, LEDs and motors.

VBA TT ZVS VDD VDD GP O GP O GP O IN0_LH IN1_LH RIN RIN RIDLE LI MP HO ME GP O GP O GP O GP I GND RCSN RSCLK RSI RSO RVDD CVD D CVS RLH IN

TLE75080-ESH Features

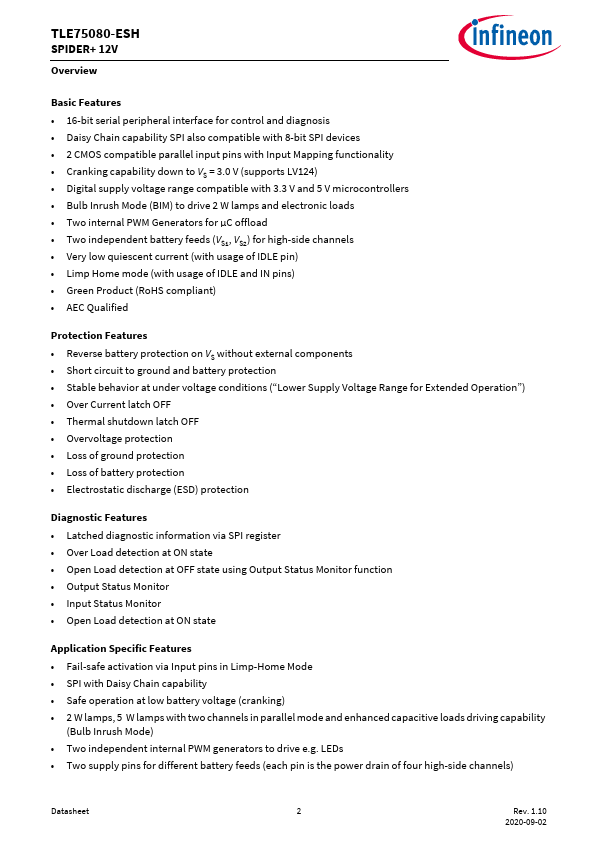

* 16-bit serial peripheral interface for control and diagnosis

* Daisy Chain capability SPI also compatible with 8-bit SPI devices

* 2 CMOS compatible parallel input pins with Input Mapping functionality

* Cranking capability down to VS = 3.0 V (supports LV124)
