TLE9261BQXV33 Mid-Range+ SBC

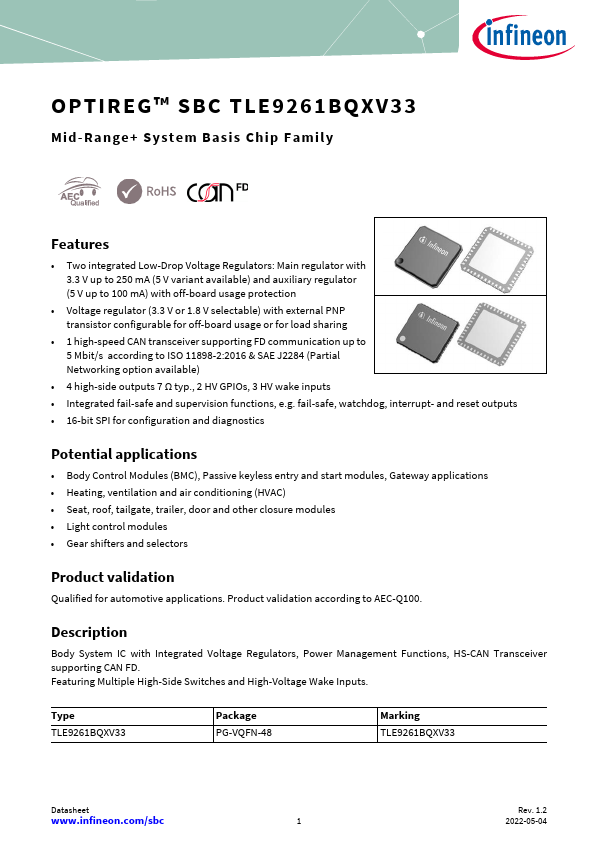

📥 Download Datasheet Datasheet Preview Page 1

Description

OPTIREG™ SBC TLE9261BQXV33 Mid-Range+ System Basis Chip Family .
Body System IC with Integrated Voltage Regulators, Power Management Functions, HS-CAN Transceiver supporting CAN FD.

📥 Download Datasheet

Preview of TLE9261BQXV33 PDF

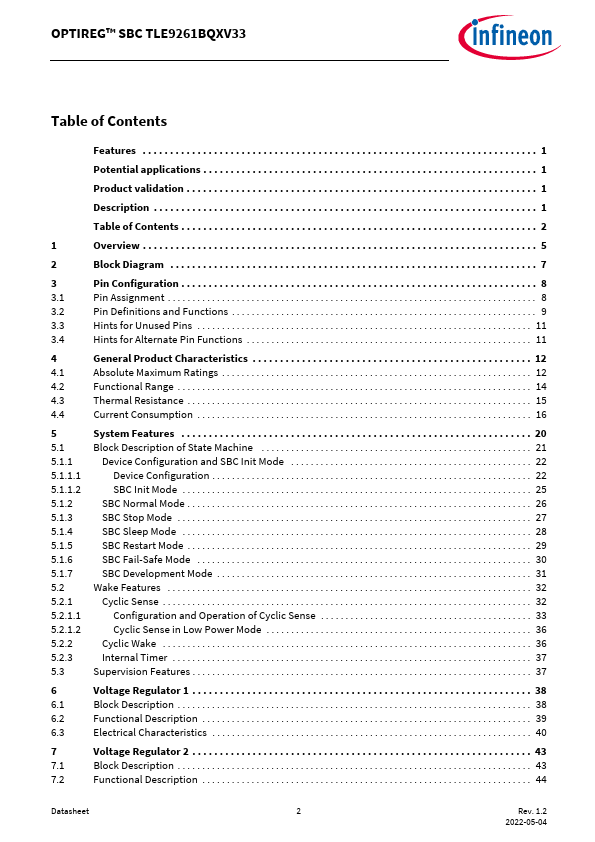

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Two integrated Low-Drop Voltage Regulators: Main regulator with 3.3 V up to 250 mA (5 V variant available) and auxiliary regulator (5 V up to 100 mA) with off-board usage protection
* Voltage regulator (3.3 V or 1.8 V selectable) with external PNP transistor configurable for off-bo

Applications

* Body Control Modules (BMC), Passive keyless entry and start modules, Gateway applications
* Heating, ventilation and air conditioning (HVAC)
* Seat, roof, tailgate, trailer, door and other closure modules
* Light control modules
* Gear shifters and selectors
