TLE9872-2QXA40 - microcontroller

Infineon

TLE9872-2QXA40 Datasheet Preview — Preview of TLE9872-2QXA40 PDF

Datasheet Details

Part number	TLE9872-2QXA40
Manufacturer	Infineon ↗
File Size	1.34 MB
Description	microcontroller
Datasheet	TLE9872-2QXA40-Infineon.pdf

TLE9872-2QXA40 Product details

Description

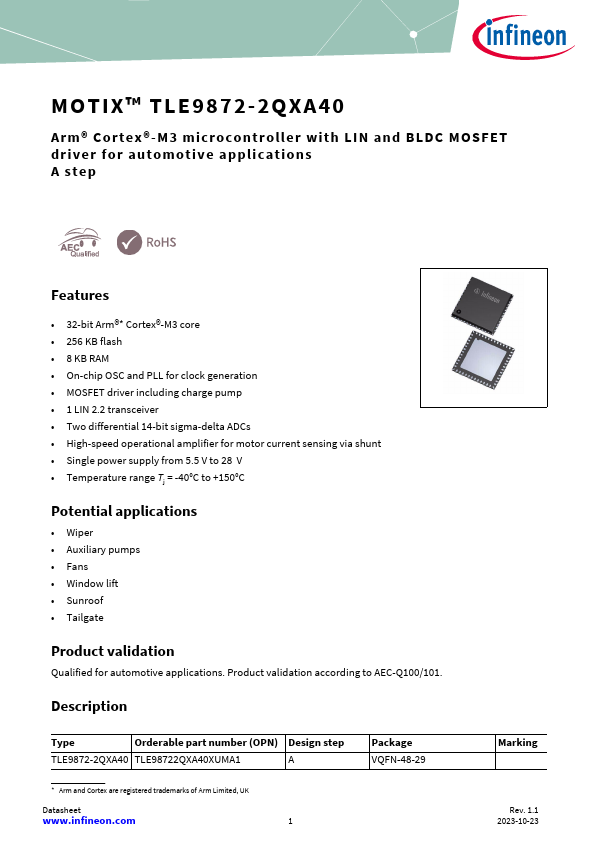

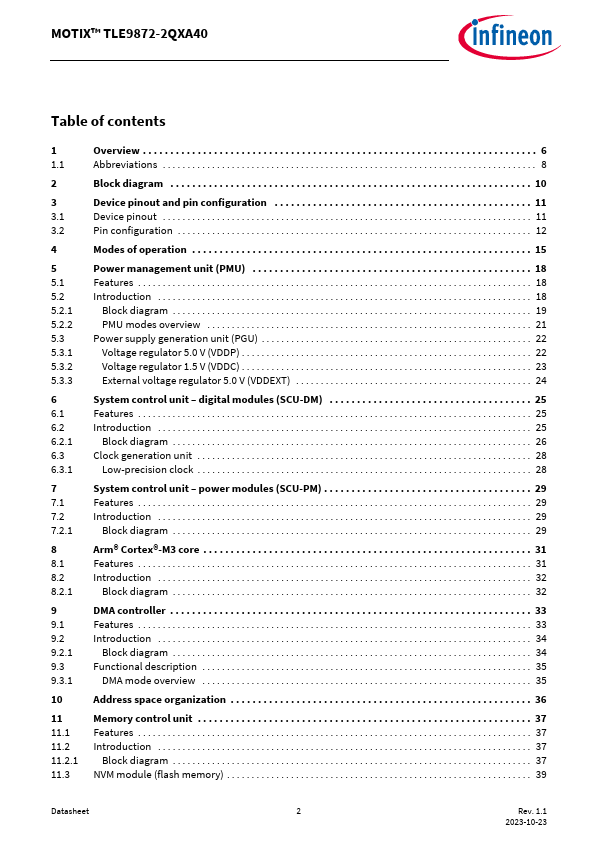

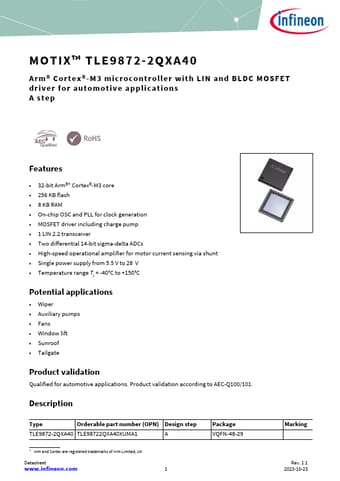

Type Orderable part number (OPN) Design step TLE9872-2QXA40 TLE98722QXA40XUMA1 A Arm and Cortex are registered trademarks of Arm Limited, UK Datasheet www.infineon.com 1 Package VQFN-48-29 Marking Rev.1.1 2023-10-23 MOTIX™ TLE9872-2QXA40 Table of contents 1 1.1 2 3 3.1 3.2 4 5 5.1 5.2 5.2.1 5.2.2 5.3 5.3.1 5.3.2 5.3.3 6 6.1 6.2 6.2.1 6.3 6.3.1 7 7.1 7.2 7.2.1 8 8.1 8.2 8.2.1 9 9.1 9.2 9.2.1 9.3 9.3.1 10 11 11.1 11.2 11.2.1 11.3 Overview

Features

32-bit Arm®.
Cortex®-M3 core.
256 KB flash.
8 KB RAM.
On-chip OSC and PLL for clock generation.
MOSFET driver including charge pump.
1 LIN 2.2 transceiver.
Two differential 14-bit sigma-delta ADCs.
High-speed operational amplifier for motor current sensing via shunt.
Single power supply from 5.5 V to 28 V.
Temperature range Tj = -40°C to +150°C Potential.
