TLE9879QXA40 - microcontroller

Infineon

📥 Download Datasheet

TLE9879QXA40 Datasheet Preview — Preview of TLE9879QXA40 PDF

Datasheet Details

Part number	TLE9879QXA40
Manufacturer	Infineon
File Size	3.55 MB
Description	microcontroller
Datasheet	TLE9879QXA40-Infineon.pdf

TLE9879QXA40 Product details

Description

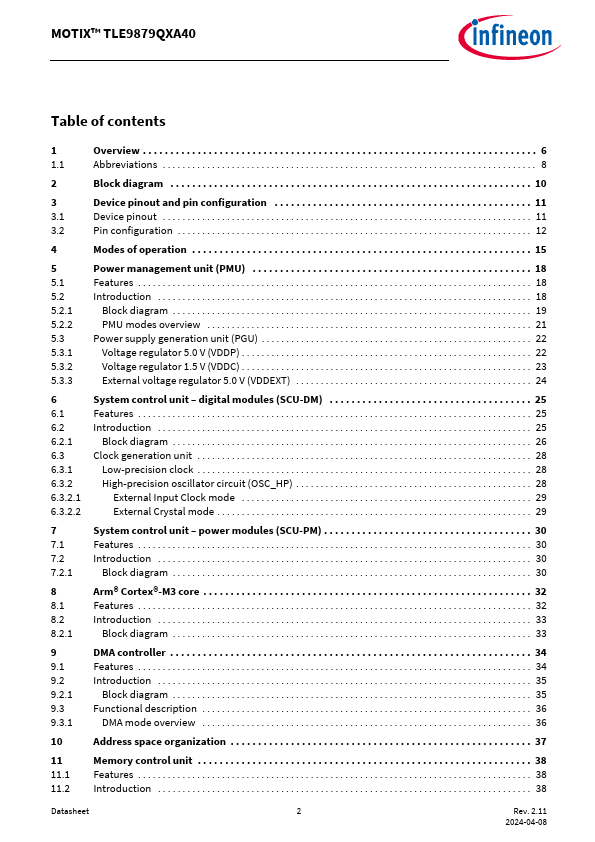

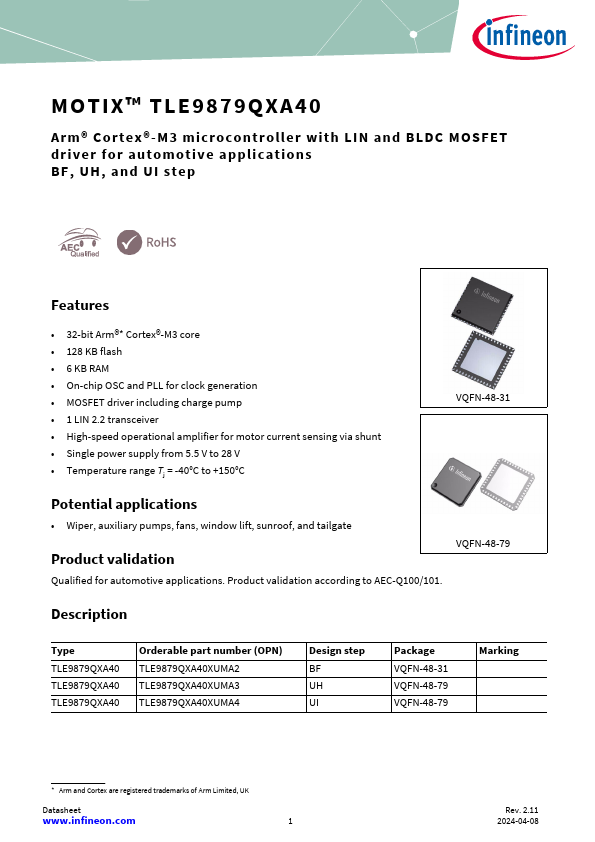

Type TLE9879QXA40 TLE9879QXA40 TLE9879QXA40 Orderable part number (OPN) TLE9879QXA40XUMA2 TLE9879QXA40XUMA3 TLE9879QXA40XUMA4 Design step BF UH UI Package VQFN-48-31 VQFN-48-79 VQFN-48-79 Marking Arm and Cortex are registered trademarks of Arm Limited, UK Datasheet www.infineon.com 1 Rev.2.11 2024-04-08 MOTIX™ TLE9879QXA40 Table of contents 1 Overview

Features

32-bit Arm®.
Cortex®-M3 core.
128 KB flash.
6 KB RAM.
On-chip OSC and PLL for clock generation.
MOSFET driver including charge pump.
1 LIN 2.2 transceiver.
High-speed operational amplifier for motor current sensing via shunt.
Single power supply from 5.5 V to 28 V.
Temperature range Tj = -40°C to +150°C VQFN-48-31 Potential.
