TVS3V3L4U Datasheet - Infineon

TVS3V3L4U TVS Diodes

Pin 6 Pin 5 Pin 4 Pin 5 Pin 1 Pin 3 n.c. Pin 4 Pin 6 Pin 1 Pin 2 Pin 3 a) Pin configuration b) Schematic diagram Figure 1-1 Pin configuration and Schematic diagram GND Pin 2 TVS3V3L4U_PinConf_and_SchematicDiag1.vsd Table 1-1 Ordering Information Type TVS3V3L4U Package SC74 FinalData Sh.

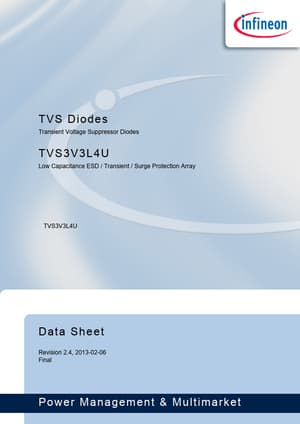

TVS Diodes Transient Voltage Suppressor Diodes TVS3V3L4U Low Capacitance ESD / Transient / Surge Protection Array TVS3V3L4U Data Sheet Revision 2.4, 2013-02-06 Final Power Management & Multimarket Edition 2013-02-06 Published by Infineon Technologies AG 81726 Munich, Germany © 2013 Infineon Technologies AG All Rights Reserved. Legal Disclaimer The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics. With respect to any examples or hin.

TVS3V3L4U Features

* ESD/Transient/Surge protection according to: IEC61000-4-2 (ESD): ±30 kV air/contact discharge IEC61000-4-4 (EFT): ±80 A (5/50 ns) IEC61000-4-5 (Surge): ±20 A (8/20 μs)

* Reverse working voltage maximum: VRWM = 3.3 V

* Low leakage current: IR < 50 nA

* Low capacitanc

TVS3V3L4U Datasheet (1.18 MB)
