iSSI20R03H

coreless transformer

Infineon

iSSI20R03H Features

* Solid-state isolators using Infineon's coreless-transformer technology

* No isolated gate bias supply required for gate driving

* Perfect match for CoolMOS™, OptiMOS™, and TRENCHSTOP™ IGBT

* Low power, large input voltage range from 2.6 V to 3.5 V (internally clampe

iSSI20R03H General Description

The iSSI solid-state isolator family provides powerful energy transmission over a galvanic isolation barrier to drive the gates of MOS-controlled power transistors, such as CoolMOS™, OptiMOS™, TRENCHSTOP™ IGBT, or CoolSiC™. The output side of the iSSI solid-state isolator family does not require a d.

iSSI20R03H Datasheet (1.23 MB)

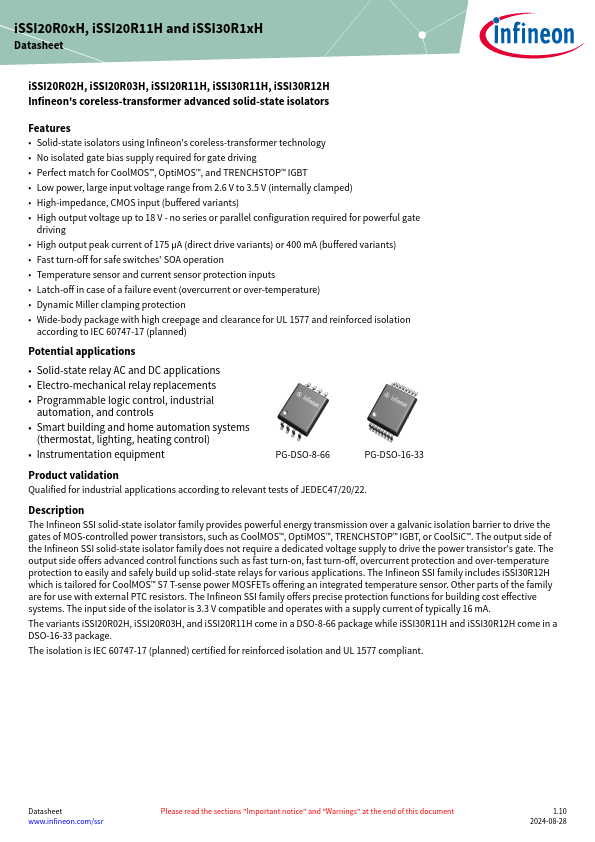

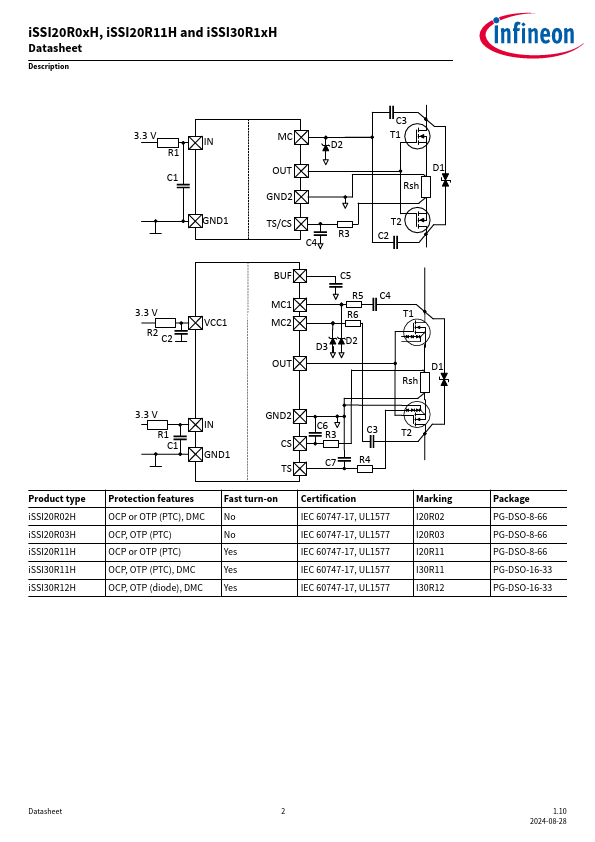

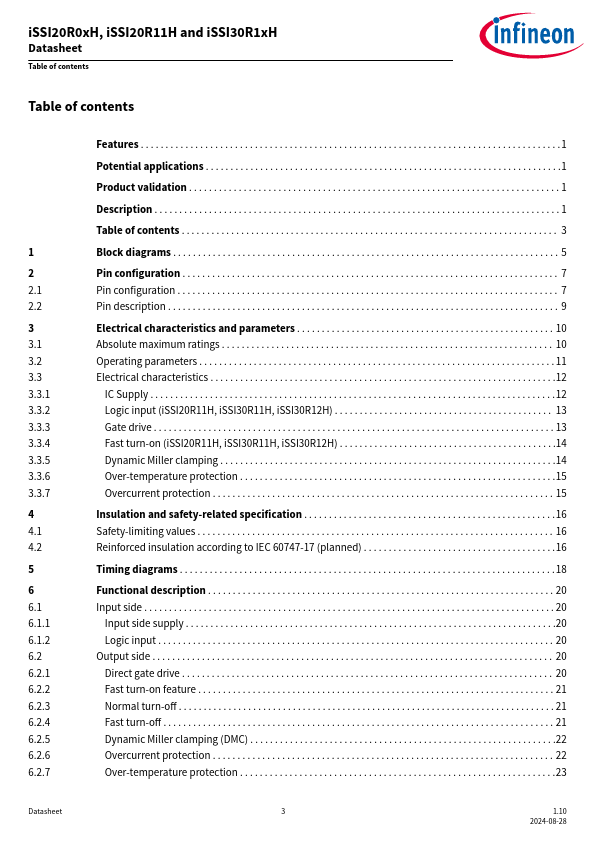

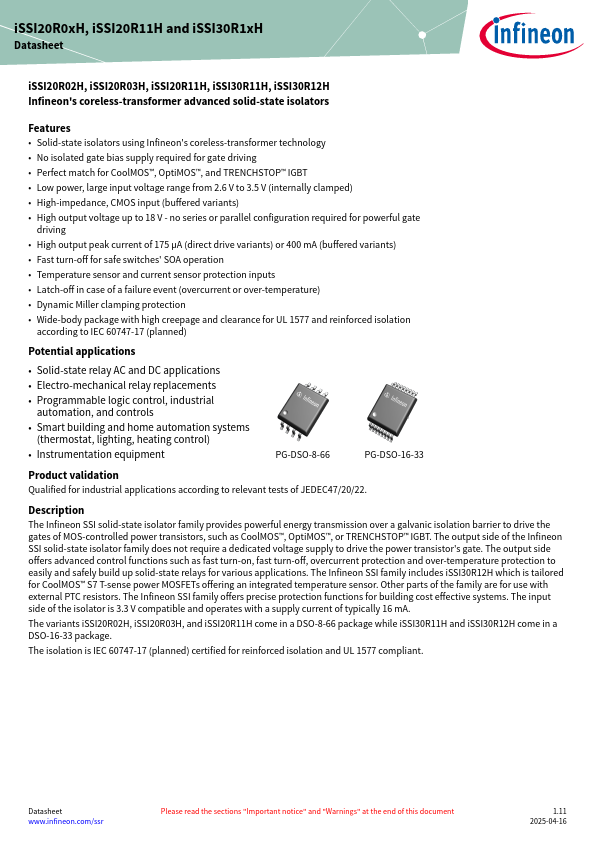

iSSI20R03H Datasheet Preview — Preview of iSSI20R03H PDF

Datasheet Details

Part number:

iSSI20R03H

Manufacturer:

Infineon ↗

File Size:

1.23 MB

Description:

Coreless transformer.
iSSI20R0xH, iSSI20R11H and iSSI30R1xH Datasheet iSSI20R02H, iSSI20R03H, iSSI20R11H, iSSI30R11H, iSSI30R12H Infineon's coreless-transformer advanced s.
