iSSI20R11H, iSSI20R02H Datasheet - Infineon

iSSI20R11H coreless transformer

The Infineon SSI solid-state isolator family provides powerful energy transmission over a galvanic isolation barrier to drive the gates of MOS-controlled power transistors, such as CoolMOS™, OptiMOS™, or TRENCHSTOP™ IGBT. The output side of the Infineon SSI solid-state isolator family does not requi.

iSSI20R11H Features

* Solid-state isolators using Infineon's coreless-transformer technology

* No isolated gate bias supply required for gate driving

* Perfect match for CoolMOS™, OptiMOS™, and TRENCHSTOP™ IGBT

* Low power, large input voltage range from 2.6 V to 3.5 V (internally clampe

iSSI20R02H-Infineon.pdf

This datasheet PDF includes multiple part numbers: iSSI20R11H, iSSI20R02H. Please refer to the document for exact specifications by model.

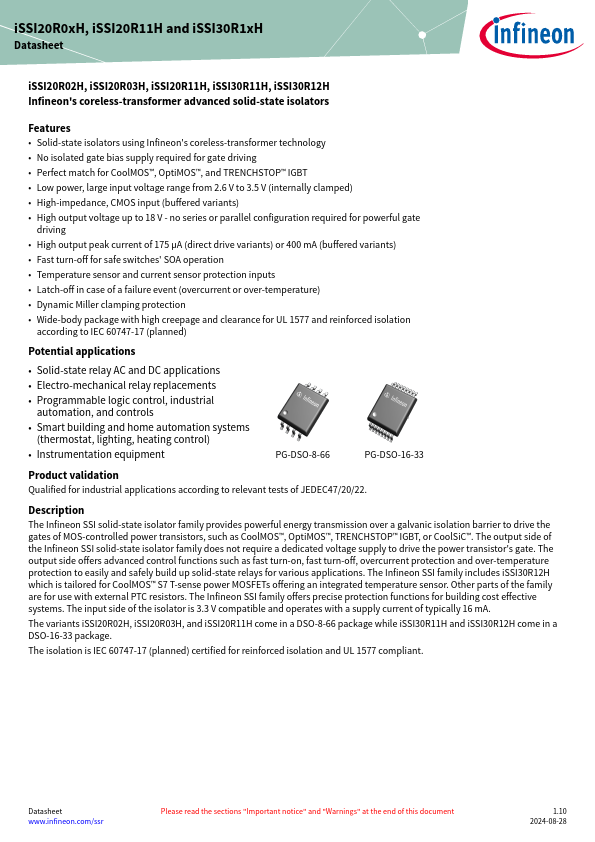

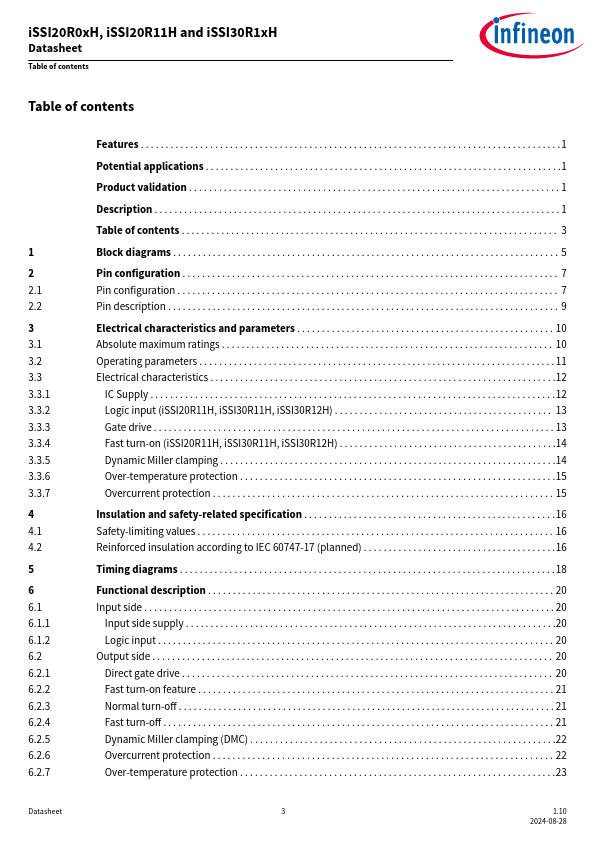

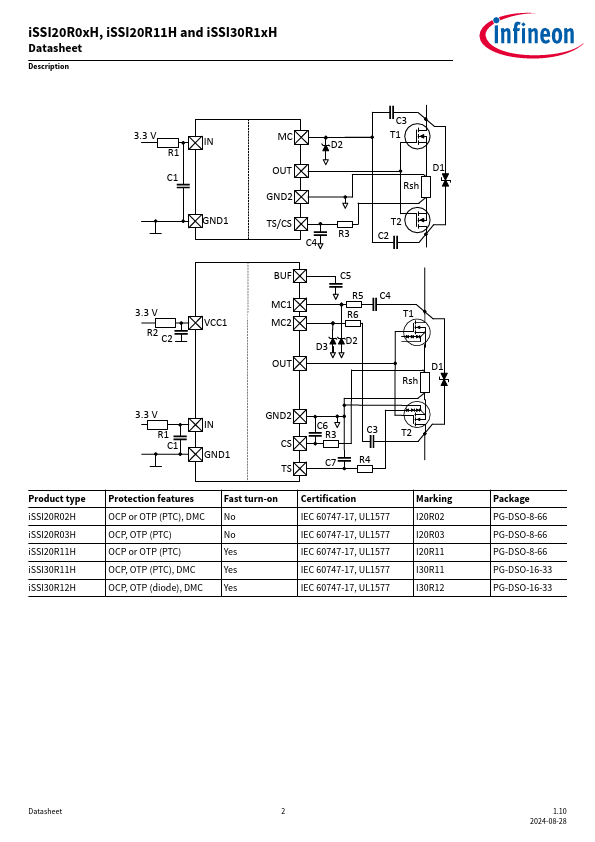

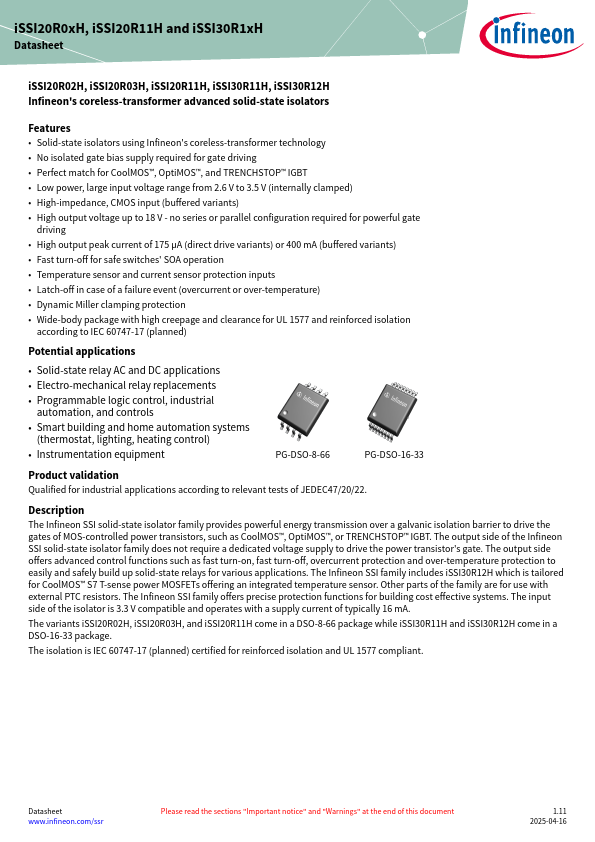

iSSI20R11H Datasheet Preview Page 2 iSSI20R11H Datasheet Preview Page 3

Datasheet Details

Part number:

iSSI20R11H, iSSI20R02H

Manufacturer:

Infineon ↗

File Size:

1.27 MB

Description:

Coreless transformer.

Note:

This datasheet PDF includes multiple part numbers: iSSI20R11H, iSSI20R02H.
Please refer to the document for exact specifications by model.
