IP6805U

Wireless Power Transmitter

IP6805U Features

* Compliant with the WPC V1.2.4 specificatiosn transmitter design

* Support 5W applications

* Input withstand voltage up to 16V

* Integrate NMOS full bridge driver and full bridge power MOS

* Integrate voltage/current demodulator

* Support FOD (Foreign Object Detection) funct

IP6805U General Description

IP6805U is a wireless power transmitter controller SoC that integrates all required functions for the latest WPC Qi V1.2.4 specifications compliant wireless power transmitter design. Support A11 coil, support 5W charging. It used analog PING to detect a RX wireless device for charging with low stand.

IP6805U Datasheet (1.41 MB)

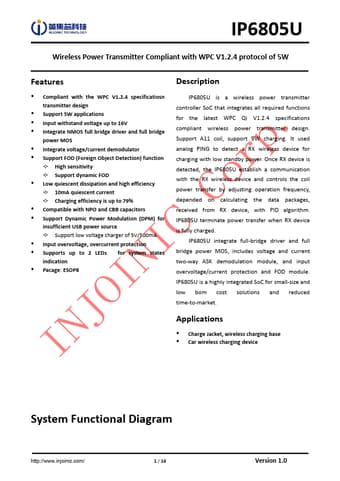

Preview of IP6805U PDF

Datasheet Details

Part number:

IP6805U

Manufacturer:

Injoinic

File Size:

1.41 MB

Description:

Wireless power transmitter.
