AC3035W, 1.8GHz - 2.8GHz High Linearity Power Amplifier

AC3035W 1.8GHz-2.8GHz High Linearity Power Amplifier .
The AC3035W is a three stage linearized power amplifier optimized for 802.

AC3035W-Innogration.pdf

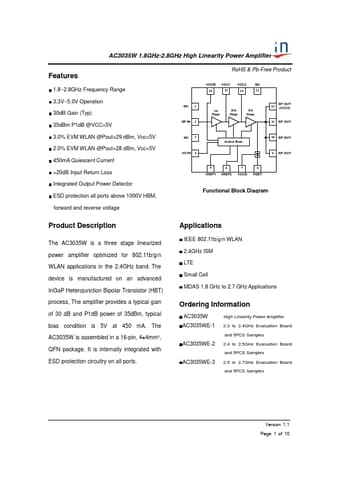

AC3035W Datasheet Preview — Preview of AC3035W PDF

Datasheet Details

Part number:

AC3035W

Manufacturer:

Innogration

File Size:

322.80 KB

Description:

1.8GHz - 2.8GHz High Linearity Power Amplifier

Features

* 1.8~2.8GHz Frequency Range 3.3V~5.0V Operation 30dB Gain (Typ) 35dBm P1dB @VCC=5V 3.0% EVM WLAN @Pout=29 dBm, Vcc=5V 2.0% EVM WLAN @Pout=28 dBm, Vcc=5V 450mA Quiescent Current >20dB Input Return Loss Integrated Output Power Detector ESD protection all ports above 1000V HBM, forward and reverse volta

Applications

* in the 2.4GHz band. The device is manufactured on an advanced InGaP Heterojunction Bipolar Transistor (HBT) process, The amplifier provides a typical gain of 30 dB and P1dB power of 35dBm, typical bias condition is 5V at 450 mA. The AC3035W is assembled in a 16-pin, 4 4mm2,
