AC30-151K-RC - Axial Coated Inductors

This page provides the datasheet information for the AC30-151K-RC, a member of the AC30 Axial Coated Inductors family.

Datasheet Summary

Features

  • 0.157 (3.99) MAX.
  • Incorporation of a special lead wire structure entirely eliminates defects inherent in existing axial lead type products and prevents lead breakage.
  • The special magnetic core structure permits the product to have reduced size, high "Q" and self resonant frequencies.
  • Treated with epoxy resin coating for humidity resistance to ensure longer life.
  • Heat resistant adhesives and special structural design for effective open circuit measurement.

📥 Download Datasheet

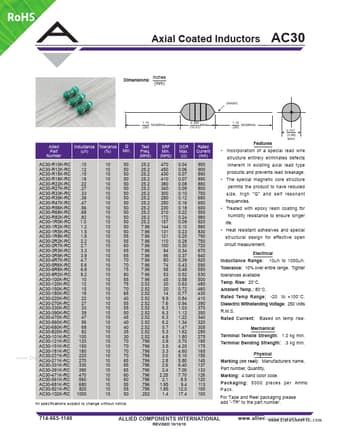

Datasheet preview – AC30-151K-RC

Datasheet Details

Part number AC30-151K-RC
Manufacturer Allied Components International
File Size 918.91 KB
Description Axial Coated Inductors
Datasheet download datasheet AC30-151K-RC Datasheet
