AC552228 Datasheet, Amplifier, Innogration

AC552228 Features

  • Amplifier 4.9~5.9GHz Frequency Range 3.3V~5.5V Operation 3.0% EVM@24dBm for 802.11a 54Mbps, 5.5V 3.0% EVM@22.5dBm for 802.11a 54Mbps, 5V 2.5% EVM@18dBm for 802.11a 54Mbps, 3.3V 240mA Quiescent Cu

PDF File Details

Part number:

AC552228

Manufacturer:

Innogration

File Size:

622.85kb

Download:

📄 Datasheet

Description:

4.9ghz to 5.9ghz linear power amplifier. The AC552228 is a 2-stage 4.9-5.9GHz high efficiency, high linearity power amplifier based on InGaP/GaAs HBT technology. The amplifie

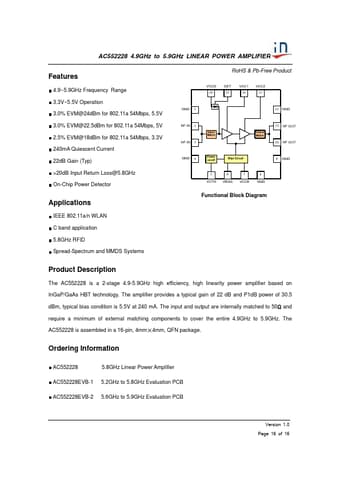

Datasheet Preview: AC552228 📥 Download PDF (622.85kb)
Page 2 of AC552228 Page 3 of AC552228

AC552228 Application

  • Applications RoHS & Pb-Free Product VCCD 16 DET 15 VCC1 14 VCC2 13 GND 1 12 GND RF IN 2 RF IN 3 Input Match Output Match 11 RF OUT 10 RF

TAGS

AC552228
4.9GHz
5.9GHz
LINEAR
POWER
AMPLIFIER
Innogration
