AC555, AC505 Datasheet - Teledyne Cougar

AC555 (AC505 / AC555) TO-8 Cascadable AMplifiers

www.DataSheet4U.com 2/99 AC505 AC555 Typical Values 0.3 TO 500 MHz TO-8 CASCADABLE AMPLIFIERS AC505 AC555 0.1 to 600 MHz +12.5 dBm +25.0 dBm Extended Bandwidth . . . . . . . . . . . . . . . 0.1 to 600 MHz Medium Output Level . . . . . . . . . . . . . . . +10.0 dBm +21.0 dBm Medium Third Order I.P. . . . . . . . . . . . . . High Performance Thin Film Standard Size TO-8 Package AC505/AC555 TO-8 Package for Amplifiers 0.450 (11.43) DIA. 0.208 (5.28) MAX. 0.185 ± 0.015 (4.70 ± 0.38) 0.025 (0.64).

AC505_TeledyneCougar.pdf

This datasheet PDF includes multiple part numbers: AC555, AC505. Please refer to the document for exact specifications by model.

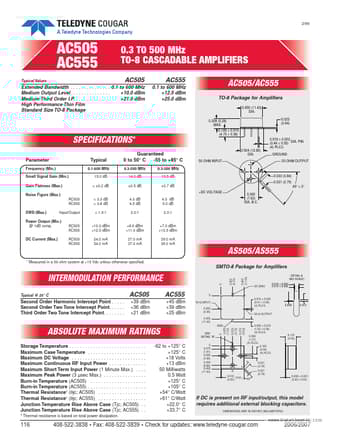

AC555 Datasheet Preview Page 2

Datasheet Details

Part number:

AC555, AC505

Manufacturer:

Teledyne Cougar

File Size:

151.22 KB

Description:

(ac505 / ac555) to-8 cascadable amplifiers.

Note:

This datasheet PDF includes multiple part numbers: AC555, AC505.
Please refer to the document for exact specifications by model.
