13650DE 13-Gbps Differential Encoder

📥 Download Datasheet  Datasheet Preview Page 1

Description

13650DE 13 Gbps Differential Encoder Data Sheet Inphi 13650DE Applications * High-speed (up to 13 Gbps) optical duobinary systems * .
The 13650DE differential encoder performs modulo two addition of the input data bit with the previous output bit.

📥 Download Datasheet

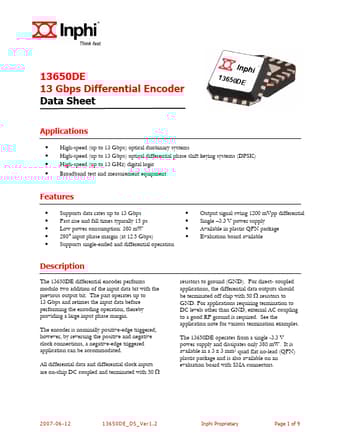

Preview of 13650DE PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
13650DE
Manufacturer
Inphi
File Size
922.94 KB
Datasheet
13650DE-Inphi.pdf
Description
13-Gbps Differential Encoder

Features

* Supports data rates up to 13 Gbps
* Output signal swing 1200 mVpp differential
* Fast rise and fall times typically 15 ps
* Single
* 3.3 V power supply
* Low power consumption: 380 mW
* Available in plastic QFN package
* 290° in

Applications

* High-speed (up to 13 Gbps) optical duobinary systems
* High-speed (up to 13 Gbps) optical differential phase shift keying systems (DPSK)
* High-speed (up to 13 GHz) digital logic
