IN5851 Datasheet - Integral

PULSE DIALER WITH REDIAL

IN5851 Features

* required for implementing a pulse dialer with 32 digit redial.

* Wide operating voltage range (2.0~6.0V)

* Low power dissipation

* Use either a standard 2 of 7 matrix keyboard with negative true common or the inexpensive form A-type keyboard

* Make/Break ratio can be

IN5851 General Description

NAME VCC PIN 1 Positive supply pin. The voltage on this pin is measured relative to Pin 6 and is supplied from a 150µA current source. This voltage should be regulated to less than 6.0 volts using on external form or regulation. VREF 2 The VREF output provides reference voltage that tracks internal .

IN5851 Datasheet (302.24 KB)

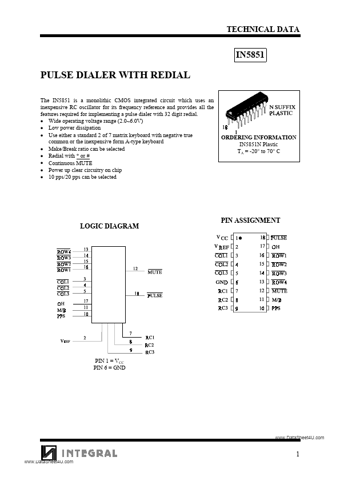

IN5851 Datasheet Preview — Preview of IN5851 PDF

Datasheet Details

Part number:

IN5851

Manufacturer:

Integral

File Size:

302.24 KB

Description:

Pulse dialer with redial.
( DataSheet : www.DataSheet4U.com ) TECHNICAL DATA IN5851 PULSE DIALER WITH REDIAL The IN5851 is a monolithic CMOS integrated circuit which uses an.
