IN500-S - Current Transducer

IN500-S Description

Current Transducer IN 500-S IP N = 500 A For the electronic measurement of current: DC, AC, pulsed, with galvanic separation between the primary and.

IN500-S Features

* Closed loop (compensated) current transducer using an extremely accurate zero flux detector
* 9-pin D-Sub male secondary connector
* Status signal to indicate the transducer state
* LED indicator confirms normal operation
* Metal housing to improve immunity to EMC & power dissi

IN500-S Applications

* Feedback element in high performance gradient amplifiers for MRI
* Feedback element in high-precision, high-stability power supplies
* Calibration unit
* Feedback element for Power Meter (e. g. EV Test Benches)
* Medical equipment. Standards IEC 61010-1 EMC:
* IEC 61000-6-2:

📥 Download Datasheet

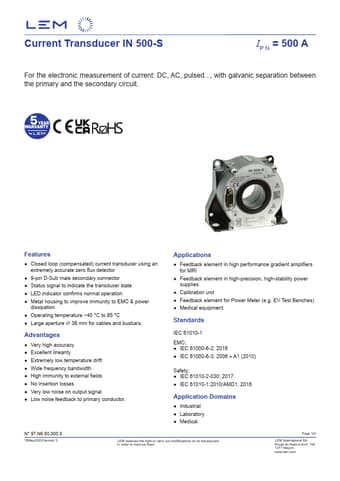

Preview of IN500-S PDF

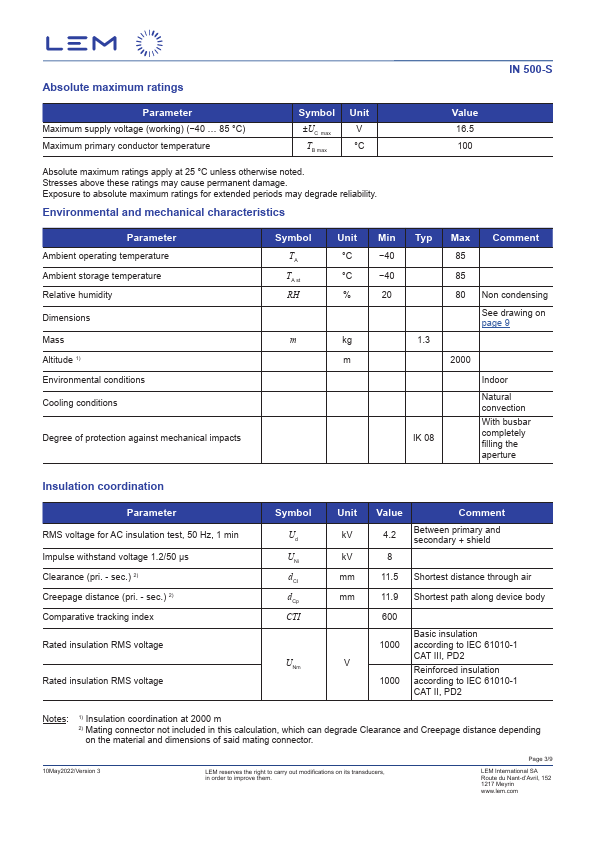

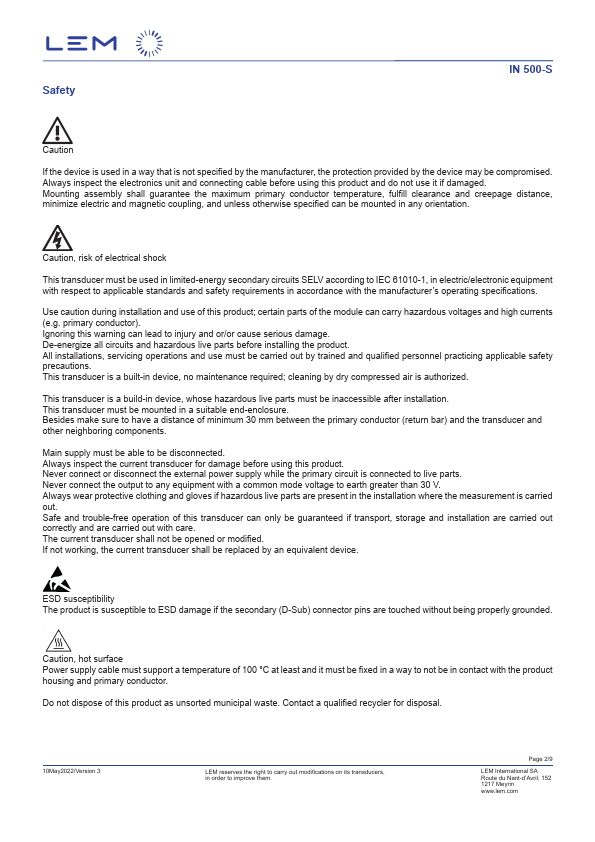

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IN500-S
Manufacturer
LEM
File Size
1.39 MB
Datasheet
IN500-S-LEM.pdf
Description
Current Transducer
