IN93AA86N Datasheet - Integral

16K-BIT SERIAL EEPROM

IN93AA86N Features

* 100 year data (16K) retention for Ta=25oC;

* Single power supply source (VСС = 1,8 V

* 6,0 V);

* Build-in voltage multiplier;

* Serial I/O bus;

* Autoincrement of address word;

* Self-timed write cycle;

* 1,000,000 Program/erase cycles;

* Power-up internal l

IN93AA86N General Description

The IN93LC86 is a Electric erasable programmable ROM (EEPROM) memory data capacity 4K (2048x8 or 1024x16) with 3-wire interface. There are 3 modification of ICs A: ICs IN93AA86AD/AN are 8 bits registers (2048х8) - ORG pin not used B: ICs IN93AA86BD/BN are 16 bits registers (1024х16) - ORG pin not us.

IN93AA86N Datasheet (212.60 KB)

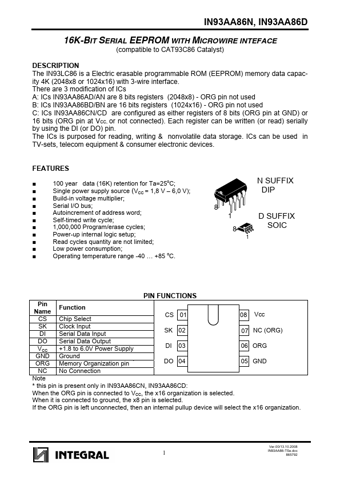

IN93AA86N Datasheet Preview — Preview of IN93AA86N PDF

Datasheet Details

Part number:

IN93AA86N

Manufacturer:

Integral

File Size:

212.60 KB

Description:

16k-bit serial eeprom.
