IZ2817 Integrated Circuit for Contactless Identification System

Contact pad number Symbol Function 01 COIL1 Coil connetion I/O 02 COIL2 Coil connetion I/O 03 GND Common 04 DATA Data output (testing) 05 VCC Power supply 06 TEST Test pad Note * Contact pads 03-06 (GND, DATA, VCC, TEST) are purposed only fo testing during IC manufacturin.

IZ2817 Integrated Circuit for Contactless Identification System with ISO15693 data exchage protocol . (functional equvivalent of SL2ICS11 ф.Philips) IZ2817 - Integrated Circuit for contactless identification system with ISO15693 data exchage protocol, is purposed for usage in Radio Frequency Identification(RFID) Smart Label built-in cheap paper labels which serve basically for replacement of a standard strokecode. Radio-frequency identification is considered as more perfect system in comparison .

IZ2817 Features

* 192 bit (24 pages x 1 bytes) EEPROM ;

* 100,000 memory program/erase cycles;

* Contactless power supply & data transfer;

* Operating field frequency 13,56 MHz;

* Data transfer rate 56kbaud;

* Built-in resonance capacitry 20 pF ≤CR≤ 27 pF;

* D

IZ2817 Datasheet (72.64 KB)

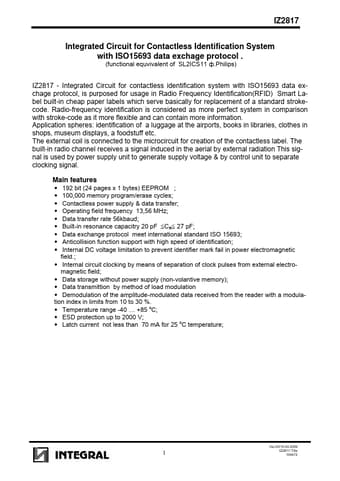

IZ2817 Datasheet Preview — Preview of IZ2817 PDF
