IZ2822

RFID circuit with read/write functions

IZ2822 Features

* 512 bit (16 pages x 4 bytes) EEPROM ;

* 100,000 memory program/erase cycles;

* Temperature range from minus 40 to plus 85 °С;

* ESD protection up to 2000 V;

* Latch current not less than 100 mA for 25 °С temperature;

* Contactless data & power supply

IZ2822 General Description

The IZ2822 RFID circuit with read/write functions is purposed for usage in contactless plastic cards. Application areas: transference supervisory control system, antitheft systems, access control systems in buildings, restricted areas, burglar alarm, registration & identification systems in transpor.

IZ2822 Datasheet (181.03 KB)

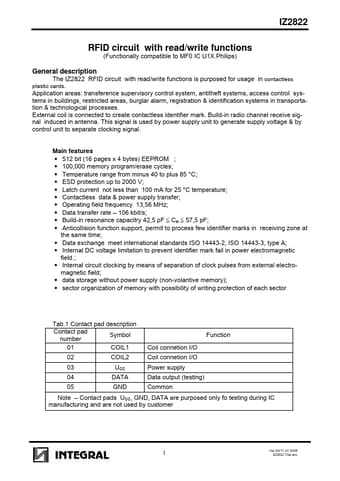

Preview of IZ2822 PDF

Datasheet Details

Part number:

IZ2822

Manufacturer:

Integral

File Size:

181.03 KB

Description:

Rfid circuit with read/write functions.
